Yash Fittings, based in Mumbai, India, is a well-known manufacturer and supplier of high–quality piping solutions, renowned for providing products of international quality standards. One of its specialty products is Stainless Steel 347 Pipe Fittings, which are stabilized austenitic stainless steel fittings suitable for use in high-temperature applications. Grade 347 is columbium (niobium)-alloyed to provide greater resistance to intergranular corrosion. These fittings provide superior durability, weldability, and strength at elevated temperatures, making them ideal for use in extreme industrial environments that demand strong and corrosion-resistant piping components.
| Specifications | ASTM A403 / ASME SA403 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size Range | 15 NB UP TO 1200 NB ; 1/8″ NB TO 48″ NB |
| Schedule | SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS. |
| Type | Seamless & 100% X-Ray Welded, Fabricated |
Stainless Steel 347 Pipe Fittings have robust chemical, mechanical, and physical properties. Chemically, they are essentially made up of iron, chromium (17–20%), nickel (9–13%), and columbium/tantalum used for stabilization, which ensures that carbide precipitation does not occur. They have a tensile strength of around 515 MPa and a yield strength of 205 MPa mechanically, with good elongation and toughness. They possess a melting point around 1,400°C and a density around 7.96 g/cm³ physically, such that they work adequately in high temperatures and corrosive conditions.
| Grade | C | Ni | Mn | P | S | Cr | Si | Mo | N |
| 347 | 0.08 max | 9.00-13.00 | 2.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 1.0 max | – | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454°C (2650°F) | Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % |

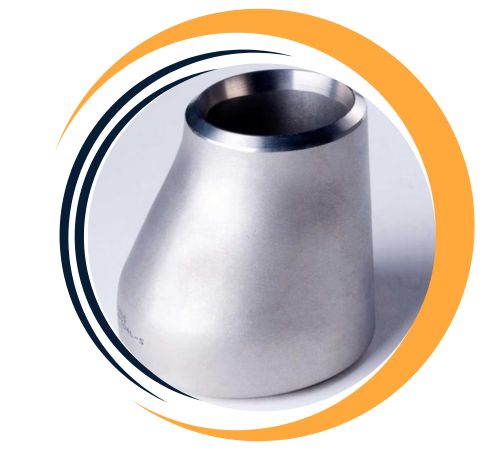

Yash Fittings one of the largest suppliers of Stainless Steel 347 Pipe Fittings in Mumbai, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 347 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 347 Pipe Fittings in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 347 Pipe Fittings from Yash Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | 08Ch18N12B | X6CrNiNb18-10 |
Stainless steel 347 pipe fittings offer several key benefits, making them ideal for high performance applications. Intergranular corrosion resistance, especially at elevated temperatures, is enhanced by the addition of columbium (niobium). These materials provide excellent oxidation and scaling resistance, and durability in harsh environments. They maintain strength and structural integrity at high temperatures, making them suitable for applications such as chemical processing, power generation and aerospace. In addition, stainless steel 347 fittings provide excellent weldability and formability, ensuring easy installation and maintenance under challenging industrial conditions.
Yes, custom sizes are available for Stainless Steel 347 Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@yashfittings.com

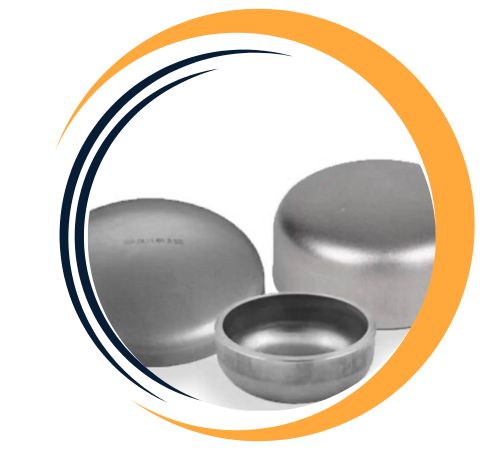

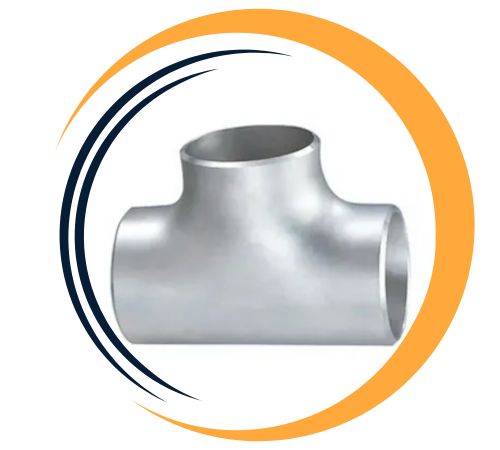

| Minimal Sizes | Outer Diam. | Caps | Straight Tee | Straight Crosses | Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | Length (in) | Center to End (in) | Center to End (in) | Lap Diameter (in) | Long Length (in) | Short Length (in) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |

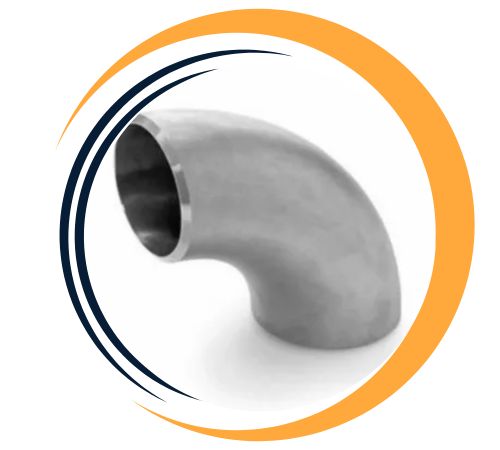

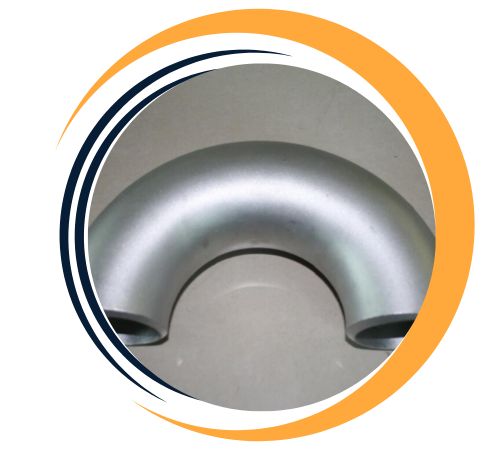

| Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
(inches) | Long Radius | Short Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Stainless Steel 347 Pipe Fittings are extensively utilized in petrochemical, power generation, chemical processing, and oil and gas industries because of their superior oxidation and intergranular corrosion resistance at elevated temperatures. They are well suited for use in heat exchangers, furnace components, and exhaust systems where thermal stability is crucial. They can also be used in high-pressure steam lines and boiler welded applications. Their greater mechanical properties and resistance to corrosion make them an adopted choice in applications with frequent thermal cycling and aggressive medium exposure.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
