Stainless Steel 317 / 317L Buttweld Fittings

Yash Fittings, based in Mumbai, India, is a prominent manufacturer and supplier of high-quality industrial pipe fittings, characterized by quality craftsmanship and dependable performance. Amongst its wide range of products, the company offers Stainless Steel 317/317L Buttweld Fittings, which are specifically designed to offer excellent corrosion resistance in corrosive environments. Grade 317 has increased molybdenum content for enhanced resistance to crevice and pitting corrosion, while 317L is a low-carbon alternative that increases weldability and reduces the potential for sensitization. These are well-suited for applications in chemical processing, pulp and paper, and marine environments.

Stainless Steel 317 Pipe Elbow In India, Stainless Steel 317L Pipe Fittings United kingdom, SS 317 Buttweld Elbow Mumbai, Stainless Steel S31700 Seamless Fittings Exporter West Mumbai, Stainless Steel 1.4449 Butt Weld Pipe Fittings in Mumbai, Stainless Steel 317 Two Joint Pipe Fittings Mumbai, 317L Stainless Steel Welded Fittings Manufacturers in Mumbai, Stainless Steel 317 Buttweld Fittings In India, ASTM A403 WP3 317L Stainless Steel Buttweld Fittings Supplier in Mumbai, India.

Stainless Steel 317 / 317L Buttweld Fittings Specification

Specifications	ASME SA403 / ASTM A403
Dimension Standard	ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49
Standard Size Range	1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded)
Manufacturing Type	Fabricated / Seamless / Welded / ERW
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom
Wall Thickness / Schedule	SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm
End Connection	Butt Weld
Melting Point	1400-1450°C for (WP317)
Outside Diameter (OD)	Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″)
Value Added Services	Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering
Other Standards	MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010
Material Test Certificates (MTC)	As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103
Materials	AISI 317
Two Halve / Two Joint Buttweld Fittings Size	6″ to 48″
Manufacturing Specification	ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2
A403 SS Seamless Fittings	Size: 15 NB to 300 NB \| Sch.& Swg: Sch.5 to Sch.XXs
A403 SS Welded Fittings	Size: 15 NB to 600 NB \| Sch.& Swg: Sch.5 to Sch.80s

Stainless Steel 317/317L Buttweld Fittings have superior chemical, mechanical, and physical properties making them ideal for challenging industrial processes. Chemically, these grades contain more molybdenum and chromium, which makes them highly resistant to pitting, crevice corrosion, and chemical attacks, particularly in acid environments. Grade 317L contains less carbon, which makes it more weldable and less susceptible to intergranular corrosion following welding. Mechanically, they have high tensile strength (about 515 MPa) and good yield strength (about 205 MPa). Physically, they remain structurally stable at high temperatures and possess good thermal and electrical conductivity.

Stainless Steel 317 / 317L Buttweld Fittings Chemical Composition

Grade	C	Ni	Mn	P	S	Cr	Si	Mo	Fe
317	0.08 max	11.00 – 15.00	2 max	0.045 max	0.030 max	18.00 – 20.00	1 max	3.00 – 4.00	57.845 min

Stainless Steel 317 / 317L Buttweld Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.9 g/cm3	1400 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

ASTM A403 Stainless Steel 317 Buttweld Fittings Cross in India, Stainless Steel 1.4449 Buttweld Pipe Fittings United kingdom, SS 317L Butt Weld Pipe Cap Mumbai, Stainless Steel 317 Eccentric Reducer West Mumbai, Stainless Steel 317L Equal Tee Mumbai, 317 Stainless Steel Reducer in Mumbai, Stainless Steel 317L SR Elbow Exporter in Mumbai,

Largest Stainless Steel 317 / 317L Buttweld Fittings Supplier in Mumbai, India

Yash Fittings is a leading supplier of Stainless Steel 317 Buttweld Fittings in Mumbai, India. We offer an extensive range of Stainless Steel 317L Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Stainless Steel 317 / 317L Buttweld Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
317	1.4449	S31700	SUS 317	–	–	–	–

Why Choose Stainless Stainless Steel 317 / 317L Buttweld Fittings from Yash Fittings?

Stainless Steel 317 Buttweld Fittings from Yash Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS S31700 Stub End Uk, ANSI B16.9 Stainless Steel 317L Pipe Fittings United kingdom, Stainless Steel 317 Pipe Bend Stockist in Mumbai, Stainless Steel 317L Pipe Nipple Manufacturer & Exporter in West Mumbai, Stainless Steel 1.4449 Butt Weld Pipe Fittings in Mumbai, Stainless Steel 317 Pipe Two Joint Pipe Fittings Mumbai, 317L Stainless Steel Pipe Welded Fittings Manufacturers in Mumbai, Stainless Steel 317 Pipe Butt weld Fittings In India, ASTM A403 Stainless Steel 317L Pipe Butt Weld Fittings Supplier in Mumbai, India.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

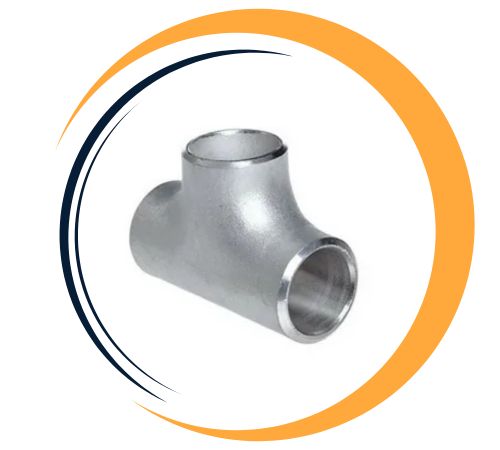

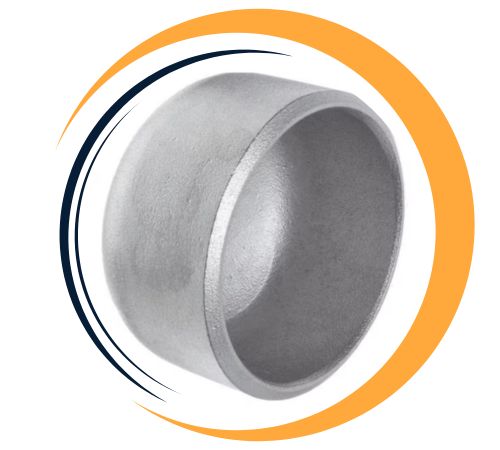

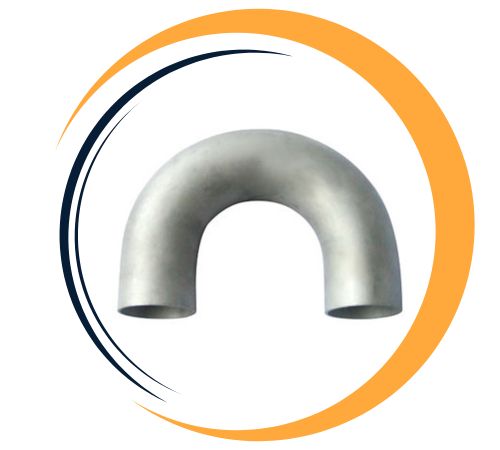

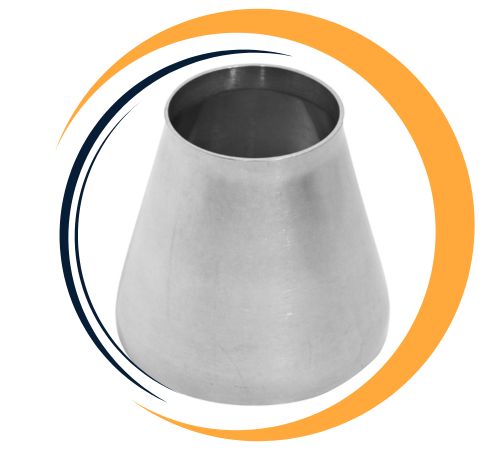

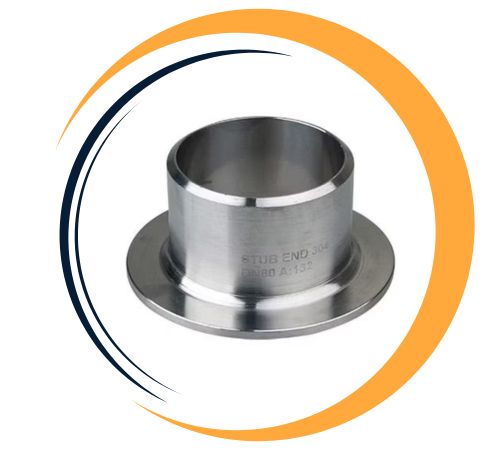

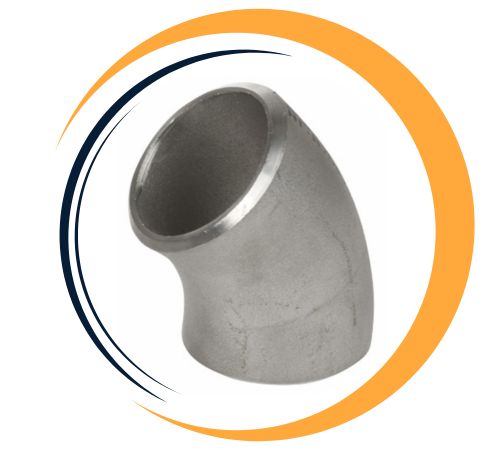

Types of Stainless Steel 317 / 317L Buttweld Fittings

Stainless Steel 317 / 317L Buttweld Fittings Dimensions Chart

Nominal Pipe Size (inches)	Outside Diameter		45°Elbows		90° Elbows		180° Returns
	Outside Diameter		Long Radius		Long Radius	Short Radius	Long Radius
	(mm)	(inches)	Center to Face (inches)	Radius (inches)	Center to Face (inches)	Center to Face (inches)	Center to Center (inches)	Back to face (inches)
1	33.4	1.315	7/8		1 1/2	1	3	2 3/16
1/2	21.3	0.840	5/8		1 1/2	–	2	1 7/8
3/4	26.7	1.050	7/16		1 1/8	–	2 1/4	1 11/16
1 1/4	42.2	1.660	1		1 7/8	1 1/4	3 3/4	2 3/4
1 1/2	48.3	1.900	1 1/8	3	2 1/4	1 1/2	4 1/2	3 1/4
2	60.3	2.375	1 3/8	4	3	2	6	4 3/16
2 1/2	73.0	2.875	1 3/4	5	3 3/4	2 1/2	7 1/2	5 3/16
3	88.9	3.500	2	6	4 1/2	3	9	6 1/4
3 1/2	101.6	4.000	2 1/4	7	5 1/4	3 1/2	10 1/2	7 1/4
4	114.3	4.500	2 1/2	8	6	4	12	8 1/4
5	141.3	5.563	3 1/8	10	7 1/2	5	15	10 5/16
6	168.3	6.625	3 3/4	12	9	6	18	12 5/16
8	219.1	8.625	5	12	12	8	24	16 5/16
10	273.1	10.750	6 1/4	15	15	10	30	20 3/8
12	323.9	12.750	7 1/2	18	18	12	36	24 3/8

Are Custom Sizes Available for Stainless Steel 317 / 317L Buttweld Fittings?

Yes, custom sizes for Stainless Steel 317 / 317L Buttweld Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com

ASTM A403 Stainless Steel 317 Butt Weld Cross in India, Stainless Steel 1.4449 Buttweld Pipe Fittings United kingdom, SS 317L Butt Weld Pipe Cap Mumbai, Stainless Steel 317 Eccentric Reducer West Mumbai, Stainless Steel 317L Equal Tee Mumbai, 317 Stainless Steel Reducer in Mumbai, SS 317L SR Elbow Exporter in Mumbai,

Application Industry of Stainless Steel 317 / 317L Buttweld Fittings

Stainless Steel 317/317L Buttweld Fittings have extensive application in industries that involve high corrosion resistance and superior strength, especially in severe chemical conditions. They are widely utilized in chemical plants, pulp and paper mills, food and dairy production, and marine equipment. These fittings are the best choice for dealing with strong acids, chlorides, and other corrosive materials. Because of their high weldability and immunity to sensitization, 317L fittings are the choice in service involving repeated welding. They find application in heat exchangers, condensers, and equipment for the pharmaceutical industry for prolonged, sound performance.
