SMO 254 Buttweld Fittings

Yash Fittings, in Mumbai, India, is a prominent manufacturer and supplier of industrial pipe fittings of high quality, delivering precision-made solutions for demanding purposes. Among its specialty items are SMO 254 Buttweld Fittings, which are tailored for superior performance in extremely corrosive environments. SMO 254 is an austenitic stainless steel with high molybdenum and nitrogen content, offering superior resistance to pitting, crevice corrosion, and chloride stress corrosion cracking. These connections are best used on offshore platforms, desalination plants, chemical processing, and marine applications where strength and resistance to corrosion are paramount.

SMO 254 Pipe Elbow In India, SMO 254 Pipe Fittings United kingdom, SMO 254 Buttweld Elbow Mumbai, SMO S31254 Seamless Fittings Exporter West Mumbai, SMO 254 Stainless Steel 1.4547 Butt Weld Pipe Fittings in Mumbai, SMO 254 Two Joint Pipe Fittings Mumbai, 254 SMO Welded Fittings Manufacturers in Mumbai, SMO 254 Buttweld Fittings In India, ASTM A240 WP3 254 SMO Buttweld Fittings Supplier in Mumbai, India.

SMO 254 Buttweld Fittings Specification

Specifications : ASTM A403 / ASME SA403

Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 3/4″ – 12″

Type : Seamless / Welded / Fabricated

Schedule : Sch 5 TO Sch XXS.

Thickness : 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.

SMO 254 Butt weld Fittings have excellent chemical, mechanical, and physical properties and are very suitable for highly corrosive environments. SMO 254 is chemically a high-alloy austenitic stainless steel containing around 20% chromium, 18% nickel, 6% molybdenum, and with additional nitrogen added, which together impart exceptional resistance to pitting, crevice corrosion, and chloride-induced stress corrosion cracking. Mechanically, it possesses high tensile strength (approximately 650 MPa) and ductility, with very good impact toughness even at sub-zero temperatures. Physically, SMO 254 possesses good thermal conductivity and oxidation resistance, enabling it to perform well in both high-temperature and aggressive chemical environments.

SMO 254 Buttweld Fittings Chemical Composition

Grade	%	Ni	Cr	Mo	Cu	N	C	Mn	Si	P	S
SMO 254	Min.	17.5	19.5	6	0.5	0.18
SMO 254	Max.	18.5	20.5	6.5	1	0.22	0.02	1	0.8	0.03	0.01

SMO 254 Buttweld Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
SMO 254	8.0 g/cm3	1320-1390 ℃	650	300	35 %

ASTM A240 SMO 254 Buttweld Fittings Cross in India, SMO 1.4547 Buttweld Pipe Fittings United kingdom, SMO 254 Stainless Steel 254 Butt Weld Pipe Cap Mumbai, SMO 254 Eccentric Reducer West Mumbai, SMO 254 Equal Tee Mumbai, 254 SMO Reducer in Mumbai, SMO 254 SR Elbow Exporter in Mumbai,

Largest SMO 254 Buttweld Fittings Supplier in Mumbai, India

Yash Fittings is a leading supplier of SMO 254 Buttweld Fittings in Mumbai, India. We offer an extensive range of SMO 254 Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

SMO 254 Buttweld Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	SIS	GOST	AFNOR	EN
SMO 254	1.4547	S31254	–	2378	–	Z1 CNDU 20.18.06Az	X1CrNiMoCuN20-18-7

Why Choose SMO 254 Buttweld Fittings from Yash Fittings?

SMO 254 Buttweld Fittingsfrom Yash Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS S31254 Stub End Uk, ANSI B16.5 SMO 254 Pipe Fittings United kingdom, SMO 254 Pipe Bend Stockist in Mumbai, SMO 254 Pipe Nipple Manufacturer & Exporter in West Mumbai, SMO 1.4547 Butt Weld Pipe Fittings in Mumbai, SMO 254 Pipe Two Joint Pipe Fittings Mumbai, 254 SMO Pipe Welded Fittings Manufacturers in Mumbai, SMO 254 Stainless Steel 254 Pipe Butt weld Fittings In India, ASTM A240 SMO 254 Pipe Butt Weld Fittings Supplier in Mumbai, India.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

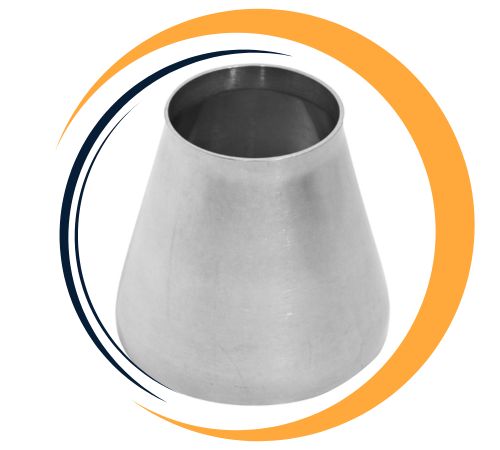

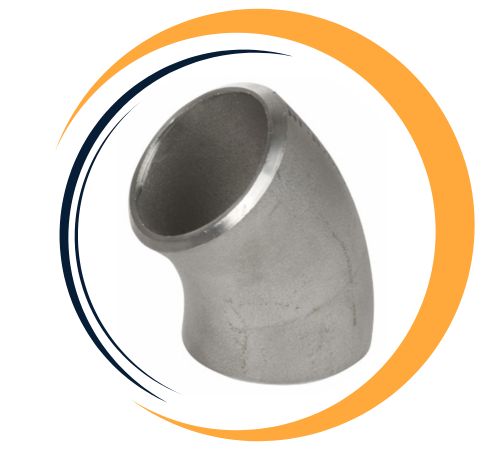

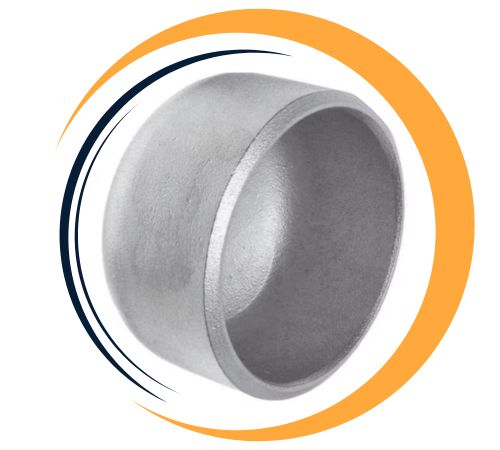

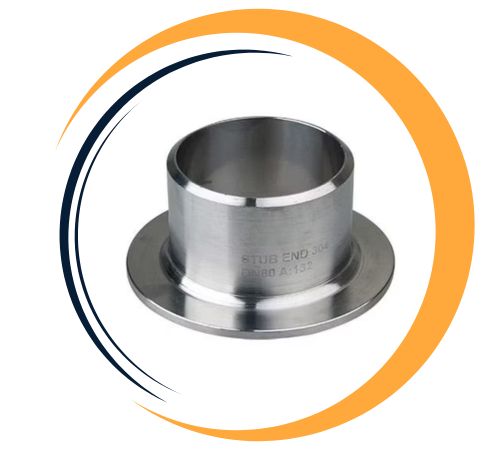

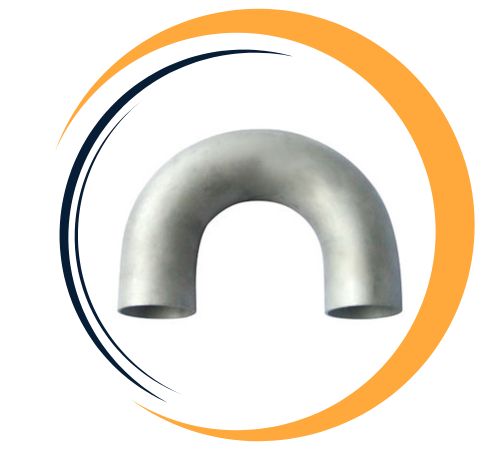

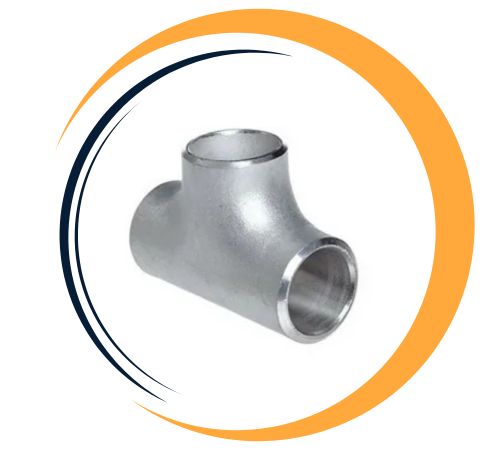

Types of SMO 254 Buttweld Fittings

SMO 254 Buttweld Fittings Dimensions Chart

Nom. Pipe Size	90° Elbows			45° Elbows		180° Return Bends				Tees		Lap Joint Stub Ends			Caps
	Long Rad.	Short Rad.	3R	Long Rad.	3R	Long Rad.		Short Rad.		C	M	F	G	R	E
	A	A	A	B	B	O	K	O	K	C	M	F	G	R	E
½	1.50	–	–	0.62	–	3.00	1.88	–	–	1.00	1.00	3.00	1.38	0.12	1.00
¾	1.50	–	–	0.75	–	3.00	2.00	–	–	1.12	1.12	3.00	1.69	0.12	1.00
1	1.50	1.00	–	0.88	–	3.00	2.19	2.00	1.62	1.50	1.50	4.00	2.00	0.12	1.50
1¼	1.88	1.25	–	1.00	–	3.75	2.75	2.50	2.06	1.88	1.88	4.00	2.50	0.19	1.50
1½	2.25	1.50	–	1.12	–	4.50	3.25	3.00	2.44	2.25	2.25	4.00	2.88	0.25	1.50
2	3.00	2.00	6.00	1.38	2.50	6.00	4.19	4.00	3.19	2.50	2.50	6.00	3.62	0.31	1.50
2½	3.75	2.50	7.50	1.75	3.12	7.50	5.19	5.00	3.94	3.00	3.00	6.00	4.12	0.31	1.50
3	4.50	3.00	9.00	2.00	3.75	9.00	6.25	6.00	4.75	3.38	3.38	6.00	5.00	0.38	2.00
3½	5.25	3.50	10.50	2.25	–	10.50	7.25	7.00	5.50	3.75	3.75	6.00	5.50	0.38	2.50
4	6.00	4.00	12.00	2.50	5.00	12.00	8.25	8.00	6.25	4.12	4.12	6.00	6.19	0.44	2.50
5	7.50	5.00	15.00	3.12	–	15.00	10.31	10.00	7.75	4.88	4.88	8.00	7.31	0.44	3.00
6	9.00	6.00	18.00	3.75	7.44	18.00	12.31	12.00	9.31	5.62	5.62	8.00	8.50	0.50	3.50
8	12.00	8.00	24.00	5.00	9.94	24.00	16.31	16.00	12.31	7.00	7.00	8.00	10.62	0.50	4.00
10	15.00	10.00	30.00	6.25	12.44	30.00	20.38	20.00	15.38	8.50	8.50	10.00	12.75	0.50	5.00
12	18.00	12.00	36.00	7.50	14.88	36.00	24.38	24.00	18.38	10.00	10.00	10.00	15.00	0.50	6.00
14	21.00	14.00	42.00	8.75	17.38	42.00	28.00	28.00	21.00	11.00	11.00	12.00	16.25	0.50	6.50
16	24.00	16.00	48.00	10.00	19.88	48.00	32.00	32.00	24.00	12.00	12.00	12.00	18.50	0.50	7.00
18	27.00	18.00	54.00	11.25	22.38	54.00	36.00	36.00	27.00	13.50	13.50	12.00	21.00	0.5	8.00
20	30.00	20.00	60.00	12.50	24.88	60.00	40.00	40.00	30.00	15.00	15.00	12.00	23.00	0.50	9.00
22	33.00	22.00	66.00	13.50	27.31	66.00	44.00	44.00	33.00	16.50	16.50	12.00	25.25	0.50	10.00
24	36.00	24.00	72.00	15.00	29.81	72.00	48.00	48.00	36.00	17.00	17.00	12.00	27.25	0.50	10.50
26	39.00	–	78.00	16.00	32.31	–	–	–	–	19.50	19.50	–	–	–	10.50
28	42.00	–	84.00	17.25	34.75	–	–	–	–	20.50	20.50	–	–	–	10.50
30	45.00	–	90.00	18.50	37.25	–	–	–	–	22.00	22.00	–	–	–	10.50
32	48.00	–	–	19.75	–	–	–	–	–	23.50	23.50	–	–	–	10.50
34	51.00	–	102.00	21.00	42.25	–	–	–	–	25.00	25.00	–	–	–	10.50
36	54.00	–	108.00	22.25	44.69	–	–	–	–	26.50	26.50	–	–	–	10.50
38	57.00	–	114.00	23.62	47.25	–	–	–	–	28.00	28.00	–	–	–	12.00
40	60.00	–	120.00	24.88	49.75	–	–	–	–	29.50	29.50	–	–	–	12.00
42	63.00	–	126.00	26.00	52.19	–	–	–	–	30.00	28.00	–	–	–	12.00
44	66.00	–	132.00	27.38	54.69	–	–	–	–	32.00	30.00	–	–	–	13.50
46	69.00	–	138.00	28.62	57.19	–	–	–	–	33.50	31.50	–	–	–	13.50
48	72.00	–	144.00	29.88	59.69	–	–	–	–	35.00	33.00	–	–	–	13.50

All dimensions given in inches for common diameters and wall thicknesses. Dimensions in accordance with ASME B16.9. Other sizes, schedules and wall thicknesses also available.

Are Custom Sizes Available for SMO 254 Buttweld Fittings?

Yes, custom sizes for SMO 254 Buttweld Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com

ASTM A403 SMO 254 Butt Weld Cross in India, SMO 1.4547 Buttweld Pipe Fittings United kingdom, SMO 254 Butt Weld Pipe Cap Mumbai, SMO 254 Eccentric Reducer West Mumbai, Stainless Steel SMO 254 Equal Tee Mumbai, 254 SMO Reducer in Mumbai, SMO 254 SR Elbow Exporter in Mumbai,

Application Industry of SMO 254 Buttweld Fittings

SMO 254 Buttweld Fittings find extensive applications in industries where high resistance to corrosion, particularly in environments with high chloride and acid content, is demanded. They are best suited for uses in desalination plants, offshore oil and gas platforms, marine applications, and chemical processing facilities. These fittings are also employed in heat exchangers, flue-gas cleaning equipment, and pulp and paper manufacturing where high strength and pitting, crevice corrosion, and stress corrosion cracking resistance are essential. SMO 254’s enhanced strength and performance render it a favorite for demanding and long-lasting piping systems.
