Yash Fittings, a Mumbai, India-based company, is a premier manufacturer and exporter of high-quality industrial pipe fittings designed to international standards. Their most sought-after products include Stainless Steel 316 / 316L Buttweld Fittings, which are produced from low-carbon and molybdenum-strengthened grades of austenitic stainless steel. The fittings provide better corrosion resistance, especially in marine and chloride environments. Yash Fittings guarantees precision-engineered solutions, which make their 316/316L buttweld fittings perfect for applications in chemical processing, pharmaceuticals, food industries, and offshore.
| Specifications | ASTM A403 / ASME SA403 |
|---|---|
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
Stainless Steel 316 / 316L Buttweld Fittings possess excellent chemical, mechanical, and physical properties. Chemically, they consist of 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, with 316L having a lower carbon content (≤0.03%) for enhanced weldability and to avoid carbide precipitation. Mechanically, they provide high tensile strength (515 MPa), good yield strength, and superior ductility. Physically, they are annealed and non-magnetic and offer good resistance to oxidation, crevice corrosion, and pitting. These properties make them robust and perfect for corrosive and high-pressure environments.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 316 | min. | – | – | – | – | 16.0 | 2.0-3.0 | 10.0 | – | |
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | – | ||
| 316L | min. | – | – | – | – | – | 16.0 | 2.0-3.0 | 10.0 | – |
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
Yash Fittings is a leading supplier of Stainless Steel 316 Buttweld Fittings in Mumbai, India. We offer an extensive range of Stainless Steel 316L Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 316 Fittings | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L Fittings | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Stainless Steel 316 / 316L Buttweld Fittings from Yash Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless steel 316/316L Buttweld Fittings provide excellent corrosion resistance, especially in harsh environments such as the marine and chemical industry, and the presence of molybdenum provides superior strength, durability and superior heat resistance against, making it ideal for important projects. The lower carbon content of 316L reduces the risk of sensitivity and intergranular corrosion, and enhances weldability. These materials are highly resistant to pitting and cravis corrosion, providing long service life. In addition, it is inert, easy to maintain, and provides flexible and leak-proof connections to plumbing systems.

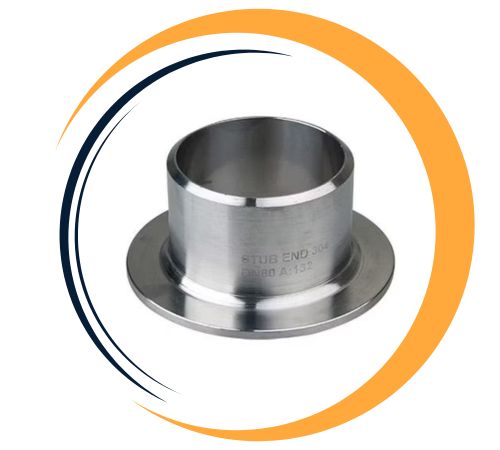

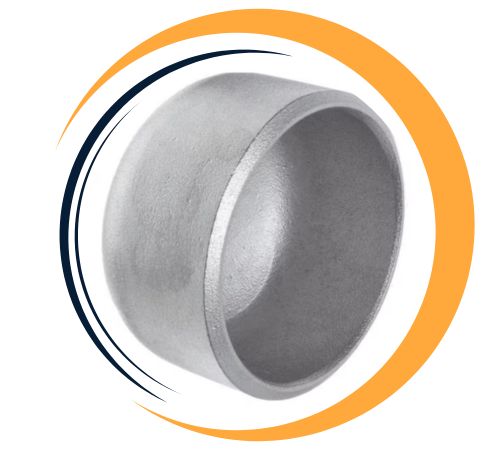

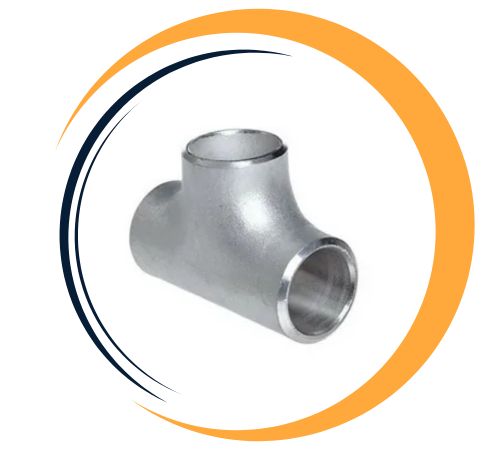

| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | (inches) | Length (inches) | Center to End (inches) | Center to End (inches) | Lap Diameter (inches) | Long Length (inches) | Short Length (inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Yes, custom sizes for Stainless Steel 316 / 316L Buttweld Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com
Stainless Steel 316/316L Butt Weld Fittings are widely adopted in industries involving higher corrosion resistance and cleanliness requirements. They can be used perfectly in chemical process applications, manufacture of foodstuffs and drinks, pharmaceutical preparations, and naval environments. Being resistant to chlorides, they can be easily applied in applications involving desalination and oceanic oil and gas platforms. They are utilized in heat exchangers, pipelines, and water treatment also. Its 316L content of low carbon improves weldability without sacrificing strength, and therefore these fittings remain a popular selection for sanitary fluid transport and high-performance system fabrication.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
