Stainless Steel 316TI Buttweld Fittings

Yash Fittings, established in Mumbai, India, is a renowned Stainless Steel 316TI Buttweld Fittings manufacturer and exporter, providing dependable piping solutions to various industries across the world. Founded on a tradition of precision engineering and uncompromising quality standards, Yash Fittings supplies an extensive variety of buttweld fittings including elbows, tees, reducers, and caps. Manufactured from Stainless Steel 316TI, a titanium-stabilized austenitic alloy, such fittings are particularly prized for their improved resistance to corrosion, heat, and intergranular attack, and are therefore best suited for major industrial uses.

Stainless Steel 316TI Pipe Elbow In India, Stainless Steel 316TI Pipe Fittings United kingdom, SS 316TI Buttweld Elbow Mumbai, Stainless Steel S31635 Seamless Fittings Exporter West Mumbai, Stainless Steel 1.4571 Butt Weld Pipe Fittings in Mumbai, Stainless Steel 316TI Two Joint Pipe Fittings Mumbai, 316TI Stainless Steel Welded Fittings Manufacturers in Mumbai, Stainless Steel 316TI Buttweld Fittings In India, ASTM A403 WP3 316TI Stainless Steel Buttweld Fittings Supplier in Mumbai, India.

Stainless Steel 316TI Buttweld Fittings Specification

Specifications	ASME SA403 / ASTM A403
Dimension Standard	ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49
Standard Size Range	1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded)
Manufacturing Type	Fabricated / Seamless / Welded / ERW
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom
Wall Thickness / Schedule	SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm
End Connection	Butt Weld
Melting Point	1400-1450°C for (WP316Ti)
Outside Diameter (OD)	Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″)
Value Added Services	Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering
Other Standards	MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010
Material Test Certificates (MTC)	As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103
Materials	AISI 316Ti
Two Halve / Two Joint Buttweld Fittings Size	6″ to 48″
Manufacturing Specification	ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2
A403 SS Seamless Fittings	Size: 15 NB to 300 NB \| Sch.& Swg: Sch.5 to Sch.XXs
A403 SS Welded Fittings	Size: 15 NB to 600 NB \| Sch.& Swg: Sch.5 to Sch.80s

Stainless Steel 316TI Buttweld Fittings have excellent chemical, mechanical, and physical properties. Chemically, the presence of titanium enhances carbide precipitation resistance, thereby increasing corrosion resistance in high-temperature conditions. Mechanically, they provide good tensile and yield strength, together with better creep resistance and toughness even at high temperatures. Physically, the fittings exhibit high thermal stability, good formability, and weldability, coupled with a smooth internal surface to ensure free flow of fluid. These properties make them ideal for severe operating conditions involving heat, pressure, and corrosive fluids.

Stainless Steel 316TI Buttweld Fittings Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 316Ti	0.08 max	2.0 max	0.75 max	0.045 max	0.030 max	16.00 – 18.00	2.00 – 3.00	10.00 – 14.00	68.395 min

Stainless Steel 316TI Buttweld Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1399 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

ASTM A403 Stainless Steel 316TI Buttweld Fittings Cross in India, Stainless Steel 1.4571 Buttweld Pipe Fittings United kingdom, SS 316TI Butt Weld Pipe Cap Mumbai, Stainless Steel 316TI Eccentric Reducer West Mumbai, Stainless Steel 316TI Equal Tee Mumbai, 316TI Stainless Steel Reducer in Mumbai, Stainless Steel 316TI SR Elbow Exporter in Mumbai,

Largest Stainless Steel 316TI Buttweld Fittings Supplier in Mumbai, India

Yash Fittings is a leading supplier of Stainless Steel 316TI Buttweld Fittings in Mumbai, India. We offer an extensive range of Stainless Steel 316TI Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Stainless Steel 316TI Buttweld Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 316Ti	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2

Why Choose Stainless Steel 316TI Buttweld Fittings from Yash Fittings?

Stainless Steel 316TI Buttweld Fittings from Yash Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS S31635 Stub End Uk, ANSI B16.9 Stainless Steel 316TI Pipe Fittings United kingdom, Stainless Steel 316TI Pipe Bend Stockist in Mumbai, Stainless Steel 316TI Pipe Nipple Manufacturer & Exporter in West Mumbai, Stainless Steel 1.4571 Butt Weld Pipe Fittings in Mumbai, Stainless Steel 316TI Pipe Two Joint Pipe Fittings Mumbai, 316TI Stainless Steel Pipe Welded Fittings Manufacturers in Mumbai, Stainless Steel 316TI Pipe Butt weld Fittings In India, ASTM A403 Stainless Steel 316TI Pipe Butt Weld Fittings Supplier in Mumbai, India.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Stainless steel 316TI Buttweld Fittings provide excellent corrosion resistance, especially in high chloride environments, making them ideal for marine and chemical applications The addition of titanium increases the alloy’s sensitivity during welding and resistance intergranular corrosion. These materials provide excellent strength and durability at high temperatures and are highly resistant to oxidation. They are also more versatile, offer better manufacturability and weldability, and provide reliable, durable durability in harsh environments. Furthermore, 316TI fittings maintain structural integrity even under cyclic loading conditions, ensuring safety and reliability in critical applications.

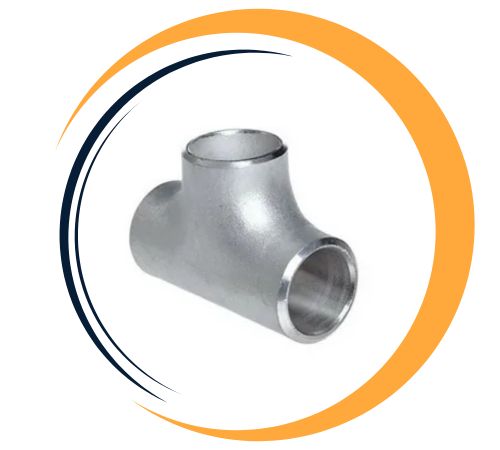

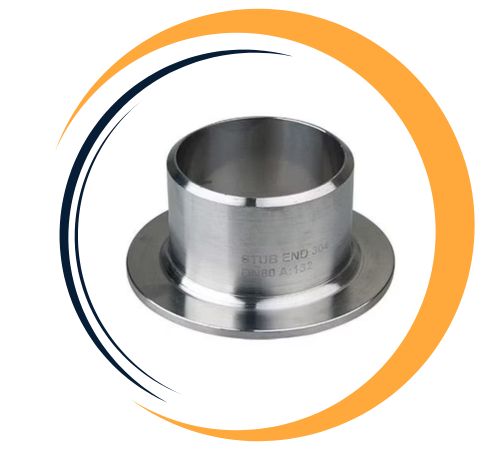

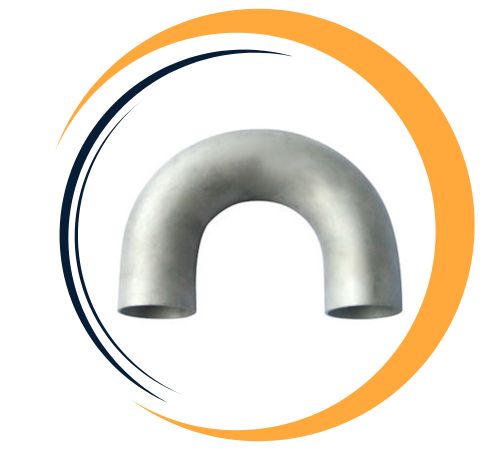

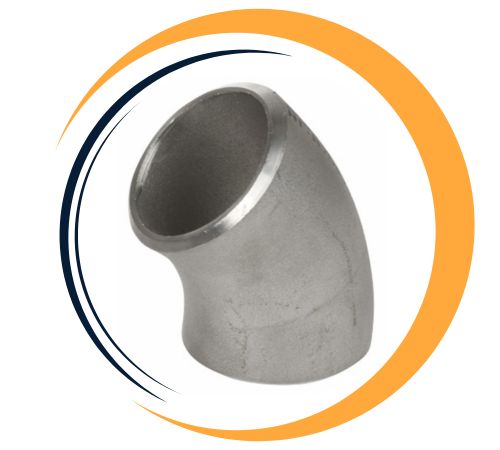

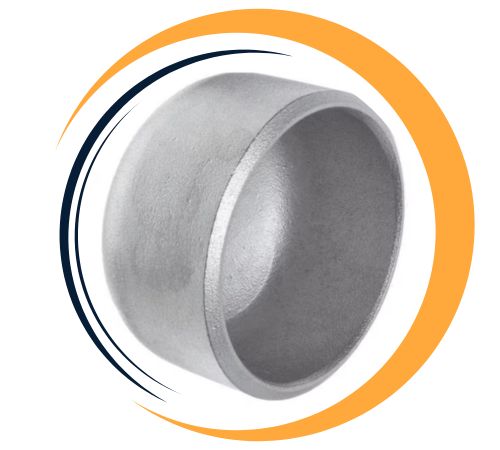

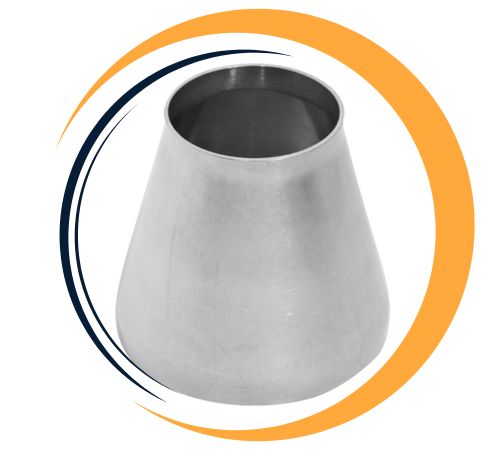

Types of Stainless Steel 316TI Buttweld Fittings

Stainless Steel 316TI Buttweld Fittings Dimensions Chart

Nominal Pipe Size (inches)	Outside Diameter		45°Elbows		90° Elbows		180° Returns
	Outside Diameter		Long Radius		Long Radius	Short Radius	Long Radius
	(mm)	(inches)	Center to Face (inches)	Radius (inches)	Center to Face (inches)	Center to Face (inches)	Center to Center (inches)	Back to face (inches)
1	33.4	1.315	7/8		1 1/2	1	3	2 3/16
1 1/4	42.2	1.660	1		1 7/8	1 1/4	3 3/4	2 3/4
1 1/2	48.3	1.900	1 1/8	3	2 1/4	1 1/2	4 1/2	3 1/4
1/2	21.3	0.840	5/8		1 1/2	–	2	1 7/8
3/4	26.7	1.050	7/16		1 1/8	–	2 1/4	1 11/16
2	60.3	2.375	1 3/8	4	3	2	6	4 3/16
2 1/2	73.0	2.875	1 3/4	5	3 3/4	2 1/2	7 1/2	5 3/16
3	88.9	3.500	2	6	4 1/2	3	9	6 1/4
3 1/2	101.6	4.000	2 1/4	7	5 1/4	3 1/2	10 1/2	7 1/4
4	114.3	4.500	2 1/2	8	6	4	12	8 1/4
5	141.3	5.563	3 1/8	10	7 1/2	5	15	10 5/16
6	168.3	6.625	3 3/4	12	9	6	18	12 5/16
8	219.1	8.625	5	12	12	8	24	16 5/16
10	273.1	10.750	6 1/4	15	15	10	30	20 3/8
12	323.9	12.750	7 1/2	18	18	12	36	24 3/8

Are Custom Sizes Available for Stainless Steel 316TI Buttweld Fittings?

Yes, custom sizes for Stainless Steel 316TI Buttweld Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com

ASTM A403 Stainless Steel 316TI Butt Weld Cross in India, Stainless Steel 28011 Buttweld Pipe Fittings United kingdom, SS 316TI Butt Weld Pipe Cap Mumbai, Stainless Steel 316TI Eccentric Reducer West Mumbai, Stainless Steel 316TI Equal Tee Mumbai, 316TI Stainless Steel Reducer in Mumbai, SS 316TI SR Elbow Exporter in Mumbai,

Application Industry of Stainless Steel 316TI Buttweld Fittings

Stainless Steel 316TI Buttweld Fittings find extensive application across industries that need excellent resistance against heat and corrosion. Some of the key industries include chemical processing, power generation, oil and gas, food and beverages, marine, and pharmaceuticals. They are best suited for use in heat exchangers, pressure vessels, and piping systems that carry aggressive chemicals due to their capacity for high-temperature working and chemical resistance. In food as well as pharmaceutical applications, they provide cleanliness and durability. Their thermal stability, strength, and resistance to intergranular corrosion qualify them for use in critical infrastructure within industrial and high-temperature service sectors.
