Inconel Pipe Fittings

Yash Fittings is a reliable brand name in the industry for providing top-class industrial pipe fittings with precision and longevity. Out of their extensive variety of products, they specialize in Inconel pipe fittings, which are perfectly suited for high-temperature and corrosive applications because of their superior strength and resistance to oxidation. These fittings come in different Inconel grades like Inconel 600, 625, and 825, which are each designed for particular uses in chemical processing, marine, and aerospace, guaranteeing performance and reliability in harsh conditions.

ASME SB366 Inconel Tees In India, Inconel Alloy Buttweld 90 deg. Elbow Fittings In United kingdom, Inconel Long / Short Radius Elbow Fittings In Mumbai, Inconel Alloy Seamless Pipe Fittings In West Mumbai, Inconel 5D Elbow Mumbai, Inconel Swedge Nipple/Pipe Nipple/Reducing Nipple Exporter in Mumbai, Inconel Pipe Fittings Manufacturer In Mumbai.

Inconel Pipe Fittings Specification

Specification	ASTM B366, ASTM SB 366, ASTM B564, ASME SB564
Grade	Inconel 600 (UNS N06600, Alloy 600, 2.4816), Inconel 601 (UNS N06601, Alloy 601, 2.4851), Inconel 625 (UNS N06625, Alloy 625, 2.4856), Inconel 800 (UNS N08800, Alloy 800)
Type	Seamless / Welded / Fabricated
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Range	½”NB to 24″NB in Sch 10s, 40s, 80s, 160s, XXS.
Dimensions	ANSI/ASME B16.9, B16.28, MSS-SP-43.

Inconel pipe fittings have remarkable chemical, mechanical, and physical properties that are ideal for tough applications. Chemically, Inconel alloys have superior oxidation, corrosion, and acid resistances, for example, against sulfuric and hydrochloric acids, due to which they are perfect for tough environments. Mechanically, they have a high tensile strength, toughness, and a capability to hold their properties under high temperatures, typically above 1000°C. Physically, Inconel exhibits a high melting point (about 1350–1400°C), low thermal expansion, and satisfactory thermal conductivity, promoting stability and dependability in both high-pressure and high-temperature systems.

Inconel Pipe Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Inconel 600	0.15 max	1.00 max	0.50 max	0.015max	0.50 max	6.00 – 10.00	72.00 min	14.00 – 17.00
Inconel 601	0.10 max	1.0 max	0.5 max	0.015 max	1.0 max	Balance	58.0 – 63.0	21.0 – 25.0
Inconel 625	0.10 max	0.50 max	0.50 max	0.015 max	–	5.0 max	58.0 min	20.0 – 23.0
Inconel 718	0.08 max	0.35 max	0.35 max	0.015 max	0.30 max	–	50.00 – 55.00	17.00 – 21.00

Inconel Pipe Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Inconel 600	8.47 g/cm3	1413 °C (2580 °F)	Psi – 95,000 , MPa – 655	Psi – 45,000 , MPa – 310	40 %
Inconel 601	8.1 g/cm3	1411 °C (2571 °F)	Psi – 80,000 , MPa – 550	Psi – 30,000 , MPa – 205	30 %
Inconel 625	8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa – 930	Psi – 75,000 , MPa – 517	42.5 %
Inconel 718	8.2 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa – 930	Psi – 75,000 , MPa – 482	45 %

ASTM B366 Inconel Buttweld Fittings In India, Inconel Alloy Pipe Fitting In United kingdom, ASME/ANSI B16.9 Buttweld Elbow Fittings In West Mumbai, Inconel Seamless Pipe Fitting Mumbai, Inconel Alloy Welded Pipe Fittings Manufacturers in Mumbai, Inconel Reducer Mumbai, Inconel Alloy Welded Pipe Fittings Supplier in Mumbai,

Largest Inconel Pipe Fittings Supplier in Mumbai, India

Yash Fittings is a leading supplier of Inconel Pipe Fittings in Mumbai, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Inconel Pipe Fittings Equivalent Grade

STANDARD	WNR.	UNS	JIS	BS	GOST	AFNOR	EN
Inconel 600	2.4816	N06600	NCF 600	NA 13	МНЖМц 28-2,5-1,5	NC15FE11M	NiCr15Fe
Inconel 601	2.4851	N06601	NCF 601	NA 49	XH60BT	NC23FeA	NiCr23Fe
Inconel 625	2.4856	N06625	NCF 625	NA 21	ХН75МБТЮ	NC22DNB4M	NiCr22Mo9Nb
Inconel 718	2.4668	N07718	–	–	–	–	–

Why Choose Inconel Pipe Fittings from Yash Fittings?

Inconel Pipe Fittings from Yash Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

Inconel Pipe Fittings Dimensions Chart

NOMINAL PIPE SIZE	ALL FITTINGS	ALL FITTINGS	180 DEG RETURN BENDS	REDUCERS	ELBOWS AND TEES	180 DEG RETURN BENDS	CAPS
NPS	ID at End (1), (3), (4)	OD at Bevel (1), (2)	Centre-to- Centre O	Overall Length H	Centre -to- End Dimension A, B, C, M	Alignment of Ends U	Overall Length E
½ to 2½	0.003	0.006 -0.003	0.025	0.006	0.006	0.003	0.012
3 to 3 ½	0.006	0.006	0.025	0.006	0.006	0.003	0.012
4	0.006	0.006	0.025	0.006	0.006	0.003	0.012
5 to 8	0.006	0.009 -0.006	0.025	0.006	0.006	0.003	0.025
10 to 18	0.012	0.016 -0.012	0.038	0.009	0.009	0.006	0.025
20 to 24	0.019	0.025 -0.019	0.038	0.009	0.009	0.006	0.025
26 to 30	0.019	0.025 -0.019	…	0.019	0.012	…	0.038
32 to 48	0.019	0.025 -0.019	…	0.019	0.019	…

Inconel Pipe Fittings exporter in Uk, inconel buttweld fitting suppliers In United kingdom, suppliers and exporters of inconel pipe elbow In Mumbai, inconel elbow – short radius prices In West Mumbai, inconel alloy concentric reducer exporter Mumbai, inconel eccentric reducer In Mumbai, inconel 3D elbow Fittings In Mumbai, inconel pipe fittings In India, inconel stub ends suppliers In Mumbai, India.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Inconel Pipe Fittings Size Chart

Nominal Pipe Size	45° Elbow		90° Elbow		OD		180° Returns
*(inch.)*	LR		SR	LR			LR
	Radius (inch.)	Center to Face (inch.)	Center to Face (inch.0)	Center to Face (inch.0)	*(inch)*	*(millimeter)*	Back to face (inch.)	Center to Center (inch.)
1/2		5/8	–	1 1/2	0.0840	21.03	1 7/8	2
3/4		7/16	–	1 1/8	1.0050	26.07	1 11/16	2 1/4
1		7/8	1	1 1/2	1.0315	33.04	2 3/16	3
1 1/4		1	1 1/4	1 7/8	1.0660	42.02	2 3/4	3 3/4
1 1/2	3	1 1/8	1 1/2	2 1/4	1.0900	48.03	3 1/4	4 1/2
2	4	1 3/8	2	3	2.0375	60.03	4 3/16	6
2 1/2	5	1 3/4	2 1/2	3 3/4	2.0875	73.00	5 3/16	7 1/2
3	6	2	3	4 1/2	3.0500	88.09	6 1/4	9
3 1/2	7	2 1/4	3 1/2	5 1/4	4.0000	101.06	7 1/4	10 1/2
4	8	2 1/2	4	6	4.0500	114.03	8 1/4	12
5	10	3 1/8	5	7 1/2	5.0563	141.03	10 5/16	15
6	12	3 3/4	6	9	6.0625	168.03	12 5/16	18
8	12	5	8	12	8.0625	219.01	16 5/16	24
10	15	6 1/4	10	15	10.0750	273.01	20 3/8	30
12	18	7 1/2	12	18	12.0750	323.09	24 3/8	36

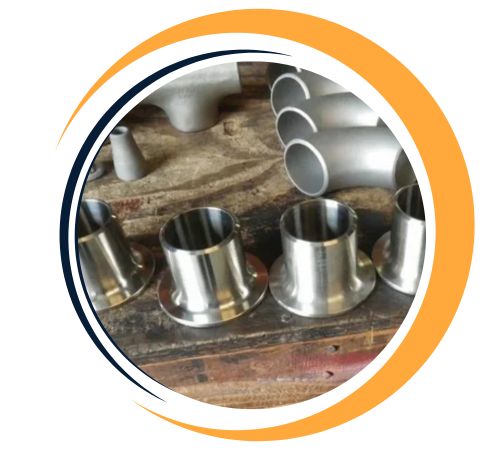

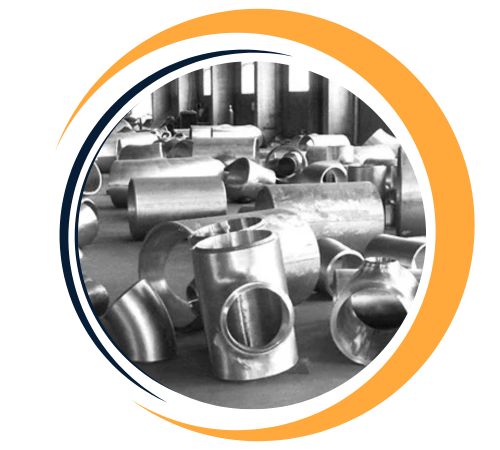

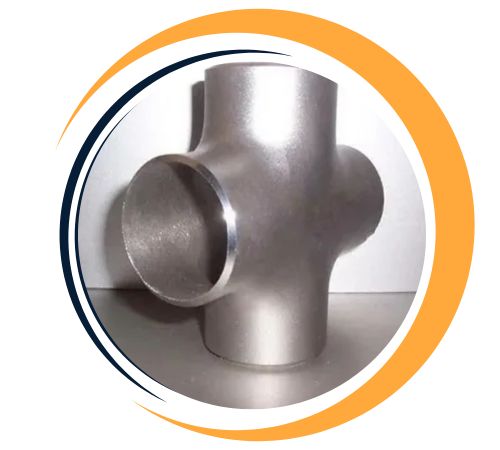

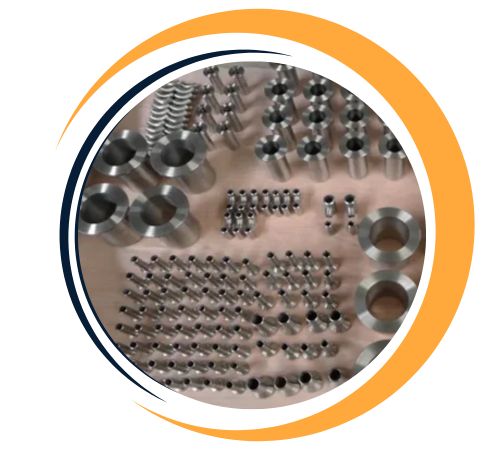

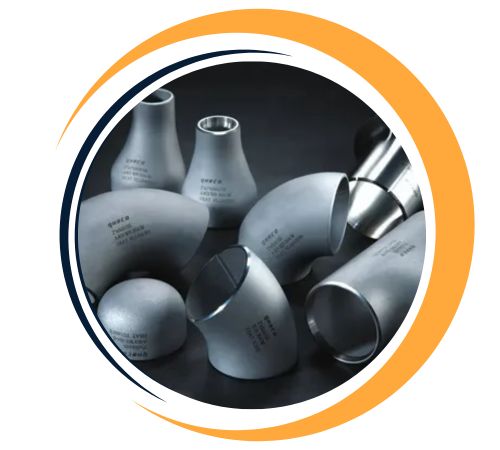

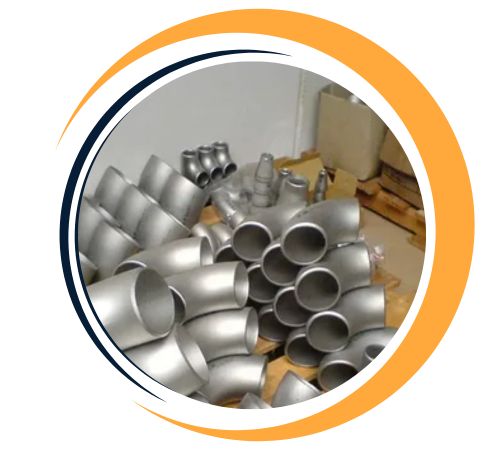

Types of Inconel Pipe Fittings

Are Custom Sizes Available for Inconel Pipe Fittings?

Yes, custom sizes for Inconel Pipe Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com

ASME SB366 Inconel Tees In India, Inconel Alloy Buttweld 90 deg. Elbow Fittings In United kingdom, Inconel Long / Short Radius Elbow Fittings In Mumbai, Inconel Alloy Seamless Pipe Fittings In West Mumbai, Inconel 5D Elbow Mumbai, Inconel Swedge Nipple/Pipe Nipple/Reducing Nipple Exporter in Mumbai, Inconel Pipe Fittings Manufacturer In Mumbai, distributors of inconel cross in different schedules and sizes India, ansi B16.9 buttweld fittngs supplier in Mumbai, inconel asme B16.28 buttweld elbow price In India, astm b366 inconel 5d elbow price list In Mumbai.

Application Industry of Inconel Pipe Fittings

Inconel pipe fittings are widely used in industries that demand high performance under extreme conditions. They are essential in chemical processing, where resistance to corrosive substances is crucial, and in the aerospace industry for components exposed to high temperatures and stress. These fittings are also used in marine engineering, power generation, and nuclear reactors due to their strength and oxidation resistance. Inconel’s durability makes it suitable for oil and gas pipelines and heat exchangers, ensuring long-lasting, leak-proof connections in aggressive and high-temperature environments.
