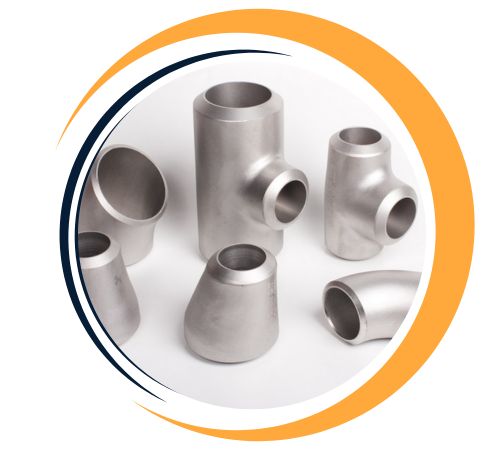

Yash Fittings, a trusted manufacturer and supplier based in Mumbai, India, specializes in providing premium-quality Inconel Forged Fittings. Renowned for their exceptional durability and resistance to extreme temperatures and corrosion, these fittings are ideal for demanding industrial applications. At Yash Fittings, we are committed to delivering precision-engineered solutions that meet international standards and ensure optimal performance. With a focus on quality, reliability, and customer satisfaction, we cater to a diverse range of industries with tailored solutions and competitive pricing.
| Specifications | ASTM B564 & ASME SB564 |
| Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Grades | Inconel 600, 601, 625, 718, 783, 690, X750 Forged Fittings |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Inconel Forged Fittings are composed primarily of nickel (50-72%) and chromium (14-23%), with additional elements like molybdenum, iron, and cobalt for enhanced strength and corrosion resistance. These fittings offer remarkable mechanical properties, including a tensile strength of up to 900 MPa and a yield strength of 400 MPa. With exceptional creep and stress-rupture resistance, they perform reliably in extreme temperatures ranging from -200°C to 982°C. Their high oxidation resistance and excellent fatigue strength make them ideal for aerospace, chemical processing, and marine industries.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Yash Fittings is a leading supplier of Inconel Forged Fittings in Mumbai, India. We offer an extensive range of Inconel Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | EN | WERKSTOFF NR. | GOST | JIS | BS | AFNOR |
| Inconel 600 | N06600 | NiCr15Fe | 2.4816 | МНЖМц 28-2,5-1,5 | NCF 600 | NA 13 | NC15FE11M |
| Inconel 601 | N06601 | NiCr23Fe | 2.4851 | XH60BT | NCF 601 | NA 49 | NC23FeA |
| Inconel 625 | N06625 | NiCr22Mo9Nb | 2.4856 | ХН75МБТЮ | NCF 625 | NA 21 | NC22DNB4M |
| Inconel 718 | N07718 | – | 2.4668 | – | – | – | – |
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Inconel Forged Fittings offer numerous advantages, making them ideal for demanding applications. Their exceptional resistance to oxidation, corrosion, and extreme temperatures ensures durability in harsh environments. These fittings exhibit superior mechanical strength, maintaining performance under high-pressure and high-stress conditions. With excellent weldability and machinability, they allow for precise installation and customization. Additionally, their resistance to pitting, crevice corrosion, and chloride-induced stress corrosion cracking enhances reliability in chemical, marine, and aerospace industries. Inconel Forged Fittings provide long-term performance, reducing maintenance needs and ensuring operational efficiency in critical systems.
| O.D. or I.D. Diameter | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
| 5/16 | 0.313 | 1/16 | 27 |
| 13/32 | 0.405 | 1/8 | 27 |
| 35/64 | 0.540 | 1/4 | 18 |
| 43/64 | 0.675 | 3/8 | 18 |
| 27/32 | 0.840 | 1/2 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
| 2-3/8 | 2.375 | 2 | 11-1/2 |
| 2-7/8 | 2.875 | 2-1/2 | 8 |
| 3-1/2 | 3.500 | 3 | 8 |
| 4 | 4.000 | 3-1/2 | 8 |
| 4-1/2 | 4.500 | 4 | 8 |
Yes, custom sizes for Inconel Forged Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com
Inconel forged fittings find broad applications in harsh environments where high pressure, high temperature, and resistance to corrosion are essential. They are used extensively in the aerospace, marine, chemical processing, and power generation applications because of their superior resistance to oxidation, carburization, and high-temperature corrosion. Inconel forged fittings function reliably in heat exchangers, reactors, gas turbines, and high-pressure steam lines. Their outstanding mechanical strength and thermal stability under stress give them an optimal fit for applications that include rapid temperature variation, harsh chemicals, and high mechanical loads to ensure safety and durability under harsh operations.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
