Inconel 625 Buttweld Fittings

Yash Fittings is a well-known producer and distributor of superior quality industrial pipe fittings, which provide consistent and long-lasting solutions across different industries. One of their specialty products is Inconel 625 Buttweld Fittings, which is produced using ASTM B366 Grade Inconel 625 (UNS N06625). The fittings are specifically created to provide superior resistance against high temperatures, oxidation, and corrosion, thereby being suitable for harsh applications. Inconel 625 Buttweld Fittings find extensive applications in aerospace, chemical processing, marine, and power generation industries, where they offer long-term performance and durability under hostile conditions.

Inconel 625 Pipe Elbow In India, Inconel 625 Pipe Fittings United kingdom, Alloy 625 Buttweld Elbow Mumbai, Inconel N06625 Seamless Fittings Exporter West ,Mumbai, Inconel 2.4856 Butt Weld Pipe Fittings in Mumbai, Inconel® Alloy 625 Two Joint Pipe Fittings Mumbai, 625 Inconel Welded Fittings Manufacturers in Mumbai, India.

Inconel 625 Buttweld Fittings Specification

Specifications	ASTM B366/ ASME SB366
Size	Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Connection	Welding
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Manufacturing process	Push, Press, Forge, Cast, etc.
Specialized manufacturer of	90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend

Inconel 625 Buttweld Fittings are composed primarily of nickel (58-63%), chromium (20-23%), and molybdenum (8-10%), with niobium (3-4%) added to enhance resistance to high-temperature corrosion and oxidation. Chemically, Inconel 625 excels in resisting corrosive environments, including seawater, acids, and oxidizing gases. Mechanically, these fittings offer high tensile strength, excellent fatigue and thermal-fatigue strength, and outstanding weldability, making them ideal for high-stress applications. Physically, Inconel 625 maintains its strength and stability at elevated temperatures and exhibits good thermal conductivity, ensuring performance in extreme conditions without degradation.

Inconel 625 Buttweld Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
625	0.10 max	0.50 max	0.50 max	0.015 max	–	5.0 max	58.0 min	20.0 – 23.0

Inconel 625 Buttweld Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa – 930	Psi – 75,000 , MPa – 705	42.5 %

Equivalent Grades for 625 Inconel Pipe Fitting

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GHOST	AFNOR	EN
Inconel 625	2.4856	N06625	NCF 625	NA 21	ХН75МБТЮ	NC22DNB4M	NiCr22Mo9Nb

Inconel Alloy 625 Butt weld Fittings India, ASTM B366 Inconel 625 Butt Weld Fittings Supplier in United kingdom, Inconel 2.4856 Buttweld Pipe Fittings Mumbai, Alloy 625 Butt Weld Pipe Cap West Mumbai, Inconel 625 Equal Tee Mumbai, Nickel Alloy 625 SR Elbow Exporter in Mumbai, UNS N06625 Stub End Mumbai, Inconel 625 Eccentric Reducer In Mumbai, India.

Largest Inconel 625 Buttweld Fittings Supplier in Mumbai, India

Yash Fittings is a leading supplier of Inconel 625 Buttweld Fittings in Mumbai, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Inconel 625 Buttweld Fittings Dimensions Standard

Nominal Pipe Size	Outside Diameter		Caps	Straight Tees	Straight Crosses	Stub Ends
inch	mm	inch	Length (inch)	Center to End (inch)	Center to End (inch)	Lap Diameter (inch)	Long Length (inch)	Short Length (inch)
1/2	21.3	0.840	1	1	–	1 3/8	3	2
3/4	26.7	1.050	1	1 1/8	–	1 11/16	3	2
1	33.4	1.315	1 1/2	1 1/2	1 1/2	2	4	2
1 1/4	42.2	1.660	1 1/2	1 7/8	1 7/8	2 1/2	4	2
1 1/2	48.3	1.900	1 1/2	2 1/4	2 1/4	2 7/8	4	2
2	60.3	2.375	1 1/2	2 1/2	2 1/2	3 5/8	6	2 1/2
2 1/2	73.0	2.875	1 1/2	3	3	4 1/8	6	2 1/2
3	88.9	3.500	2	3 3/8	3 3/8	5	6	2 1/2
3 1/2	101.6	4.000	2 1/2	3 3/4	3 3/4	5 1/2	6	3
4	114.3	4.500	2 1/2	4 1/8	4 1/8	6 3/16	6	3
5	141.3	5.563	3	4 7/8	4 7/8	7 5/16	8	3
6	168.3	6.625	3 1/2	5 5/8	5 5/8	8 1/2	8	3 1/2
8	219.1	8.625	4	7	7	10 5/8	8	4
10	273.1	10.750	5	8 1/2	8 1/2	12 3/4	10	5
12	323.9	12.750	6	10	10	15	10	6

Inconel 625 Buttweld Fittings Pressure Rating Chart

DN	Schedule 10S			Schedule 40S			Schedule 80S
900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

Why Choose Inconel 625 Buttweld Fittings from Yash Fittings?

Inconel 625 Buttweld Fittings from Yash Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

625 Inconel Reducer in India, ASTM B366 Inconel 625 Butt Weld Cross in United kingdom, ANSI B16.9 Inconel Alloy 625 Pipe Fittings West Mumbai, Inconel 625 Pipe Bend Stockist in Mumbai, Inconel 625 Pipe Nipple Manufacturer & Exporter in Mumbai, Inconel 625 Buttweld Fittings Mumbai, ASTM B366 Inconel 625 Butt Weld Cross in Mumbai.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

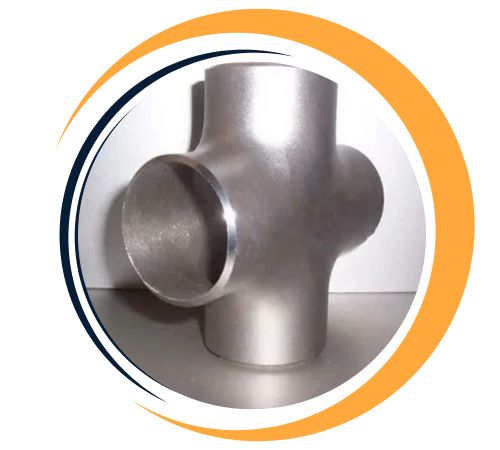

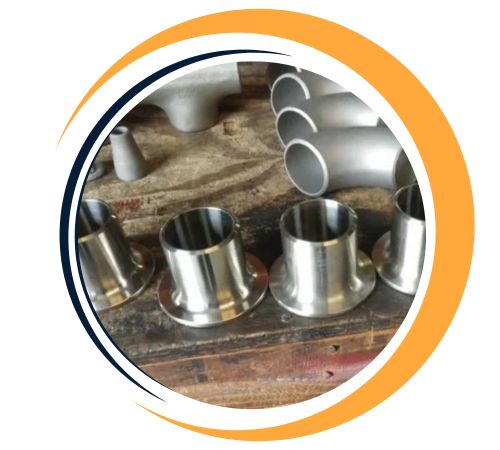

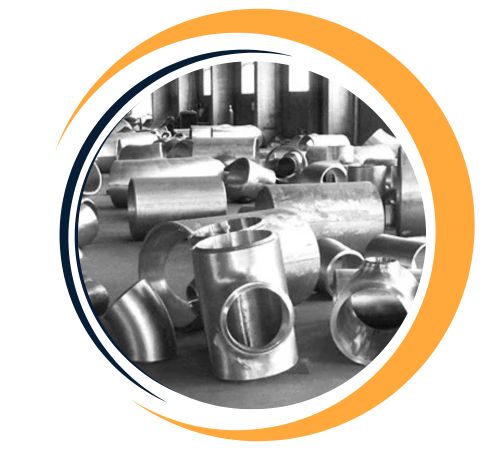

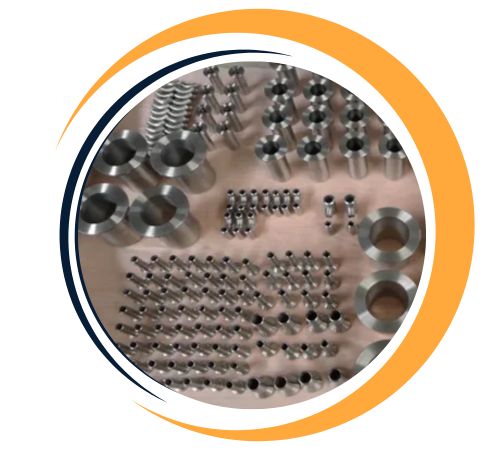

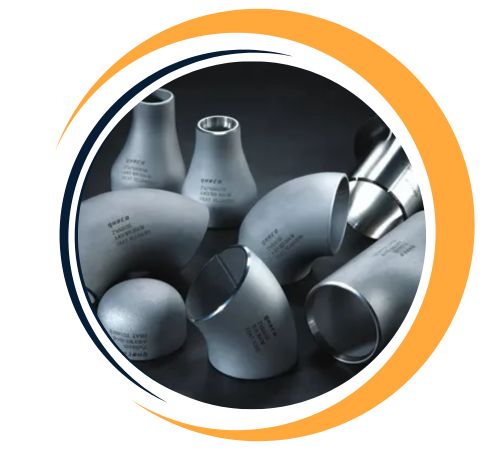

Types of Inconel 625 Buttweld Fittings

Are Custom Sizes Available for Inconel 625 Buttweld Fittings?

Yes, custom sizes for Inconel 625 Buttweld Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com

Inconel 625 Pipe Elbow In India, Inconel 625 Pipe Fittings United kingdom, Alloy 625 Buttweld Elbow Mumbai, Inconel N06625 Seamless Fittings Exporter West ,Mumbai, Inconel 2.4856 Butt Weld Pipe Fittings in Mumbai, Inconel® Alloy 625 Two Joint Pipe Fittings Mumbai, 625 Inconel Welded Fittings Manufacturers in Mumbai, India.

Application Industry of Inconel 625 Buttweld Fittings

Inconel 625 Buttweld Fittings are applied in industries where there is a need for superior strength as well as corrosion and oxidation resistance in high-temperature environments. The fittings are perfectly applicable in aerospace, chemical processing, marine, and power generation applications, especially in turbines, exhaust systems, and heat exchangers. The stress corrosion cracking, pitting, and high-temperature oxidation resistance of Inconel 625 render it suitable for harsh environments like high-pressure steam systems and gas turbines. These fittings provide lasting durability and reliability in demanding, high-performance applications where materials are subjected to hostile and severe environments.
