Inconel 601 Buttweld Fittings

Yash Fittings is a well-known manufacturer and supplier of industrial pipe fittings with high performance, renowned for providing quality, reliability, and accuracy to a broad spectrum of industries. One of their leading product offerings is Inconel 601 Buttweld Fittings, which are made from ASTM B366 Grade Inconel 601 (UNS N06601). These fittings are designed to suit high-temperature and corrosive conditions and exhibit excellent resistance to oxidation, carburization, and thermal stress. Perfect for heat treatment applications, chemical processing, and power generation, Yash Fittings’ Inconel 601 fittings promise longevity and unvarying performance in severe operating conditions.

Inconel 3d Pipe Bend In India, ANSI B16.9 Inconel 601 Welded Buttweld Fittings United kingdom, Inconel UNS N06601 Seamless Pipe Fittings West Mumbai, Inconel® Alloy 601 180 Deg bend Mumbai, Inconel® Alloy 601 Pipe bend Supplier in Mumbai, Inconel® Alloy 601 Equal Tee Mumbai, Inconel 601 Pipe Fittings Mumbai, ASME SB366 Inconel 601 Long Stub In India,

Inconel 601 Buttweld Fittings Specification

Inconel 601 Pipe Fittings Specifications
Specifications	:	ASTM B366 / ASME SB366
Size	:	Seamless Butt Weld Fittings: 1/2″ – 10″, Welded Butt Weld Fittings: 1/2″ – 48″
Standards	:	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Thickness	:	5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75
Type	:	Seamless / Welded / Fabricated

Inconel 601 Buttweld Fittings are composed mainly of nickel (58-63%) and chromium (21-25%), with small additions of aluminum, which enhance their resistance to high-temperature oxidation and corrosion. Chemically, the aluminum content contributes to the formation of a strong, adherent oxide layer that protects the material in extreme heat. Mechanically, Inconel 601 offers excellent tensile strength, good creep resistance, and high fatigue strength, making it suitable for demanding conditions. Physically, it retains stability under thermal cycling, resists scaling, and exhibits good thermal conductivity, making it ideal for furnace components, heat exchangers, and exhaust systems.

Inconel 601 Buttweld Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Inconel 601	0.15 max	1.00 max	0.50 max	0.015max	1.0 max	balance	58.0-63.0	21.0-25.0

Inconel 601 Buttweld Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Inconel 601	8.1 g/cm3	1411 °C (2571 °F)	Psi – 80,000 , MPa – 550	Psi – 30,000 , MPa – 205	30 %

Equivalent Grades for 601 Inconel Pipe Fitting

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Inconel 601	2.4851	N06601	NCF 601	NA 49	XH60BT	NC23FeA	NiCr23Fe

Alloy 601 Short Radius Elbow Supplier In India, Inconel 10d Pipe Bend United kingdom, Inconel WERKSTOFF NR.2.4851 Cross Exporter in Mumbai, 601 Inconel Alloy End Cap West Mumbai, Inconel 5d Pipe Bend Mumbai, Inconel 601 Pipe Elbow Mumbai, Supplier of Inconel 601 45 degree Elbow Mumbai, 601 Inconel Reducer India, ASTM B366 601 Inconel Alloy 90 degree Elbow Exporters and Suppliers in Mumbai, India.

Largest Inconel 601 Buttweld Fittings Supplier in Mumbai, India

Yash Fittings is a leading supplier of Inconel 601 Buttweld Fittings in Mumbai, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Inconel 601 Buttweld Fittings Dimensions Standard

Nominal Pipe Size	Outside Diameter		90° Elbows		45° Elbows		180° Returns
(inches)			Long Radius	Short Radius	Long Radius		Long Radius
	(mm)	(inches)	Center to Face (inches)	Center to Face (inches)	Center to Face (inches)	Radius (inches)	Center to Center (inches)	Back to face (inches)
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8	–	7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Steel Buttweld Fittings Pressure Rating Chart

NPS (inch)	Pipe Sch.	Wall Thk. (in)	OD (inch)	Temperature
				100	200	300	400	500
				Allowable Stress (Pressure Rating)
				16700	16700	16700	15500	14400
1″	40	0.133	1.315	2205	2205	2205	2047	1902
	80	0.179	1.315	3061	3061	3061	2841	2640
	160	0.250	1.315	4493	4493	4493	4170	3874
1 1/2″	40	0.145	1.900	1629	1629	1629	1512	1404
	80	0.200	1.900	2303	2303	2303	2138	1986
	160	0.281	1.900	3362	3362	3362	3120	2899
2″	40	0.154	2.375	1371	1371	1371	1272	1182
	80	0.218	2.375	1985	1985	1985	1843	1712
	160	0.344	2.375	3283	3283	3283	3047	2831
3″	40	0.216	3.500	1301	1301	1301	1208	1122
	80	0.300	3.500	1844	1844	1844	1712	1590
	160	0.438	3.500	2787	2787	2787	2587	2403
4″	40	0.237	4.500	1102	1102	1102	1023	950
	80	0.337	4.500	1596	1596	1596	1482	1377
	160	0.531	4.500	2611	2611	2611	2424	2552
5″	40	0.258	5.563	965	965	965	896	832
	80	0.375	5.563	1428	1428	1428	1325	1231
	160	0.625	5.563	2474	2474	2474	2296	2133
6″	40	0.280	6.625	877	877	877	814	756
	80	0.432	6.625	1379	1379	1379	1280	1189
	160	0.719	6.625	2382	2382	2382	2211	2054
8″	40	0.322	8.625	771	771	771	716	665
	80	0.500	8.625	1218	1218	1218	1131	1050
	160	0.906	8.625	2298	2298	2298	2133	1982
10″	40	0.365	10.750	699	699	699	649	603
	80	0.594	10.750	1159	1159	1159	1075	999
	160	1.125	10.750	2289	2289	2289	2124	1974

Why Choose Inconel 601 Buttweld Fittings from Yash Fittings?

Inconel 601 Buttweld Fittings from Yash Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

Inconel 3d Pipe Bend In India, ANSI B16.9 Inconel 601 Welded Buttweld Fittings United kingdom, Inconel UNS N06601 Seamless Pipe Fittings West Mumbai, Inconel® Alloy 601 180 Deg bend Mumbai, Inconel® Alloy 601 Pipe bend Supplier in Mumbai, Inconel® Alloy 601 Equal Tee Mumbai, Inconel 601 Pipe Fittings Mumbai, ASME SB366 Inconel 601 Long Stub In India,

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

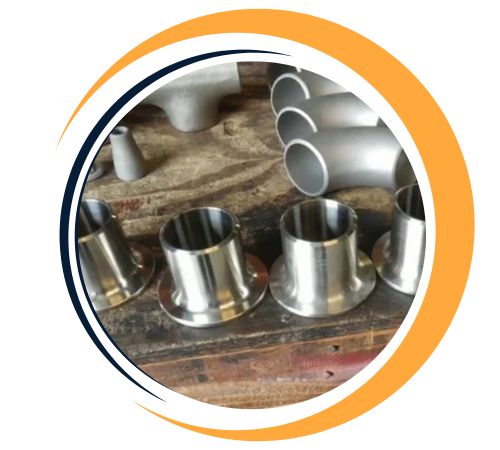

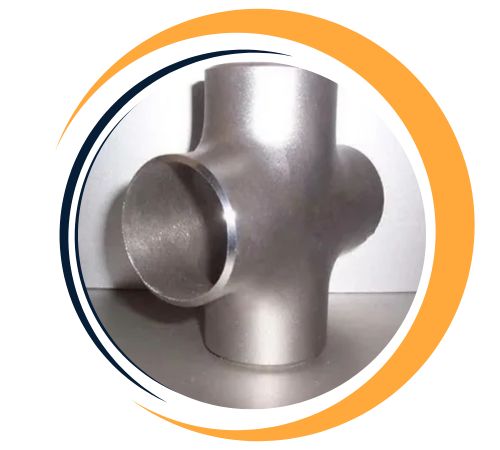

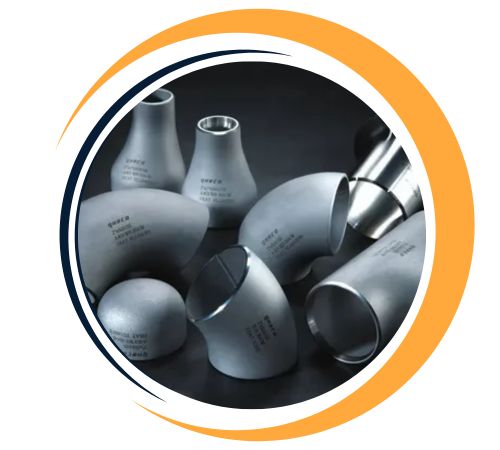

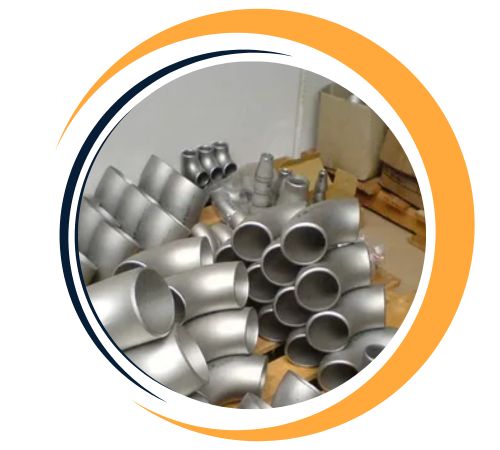

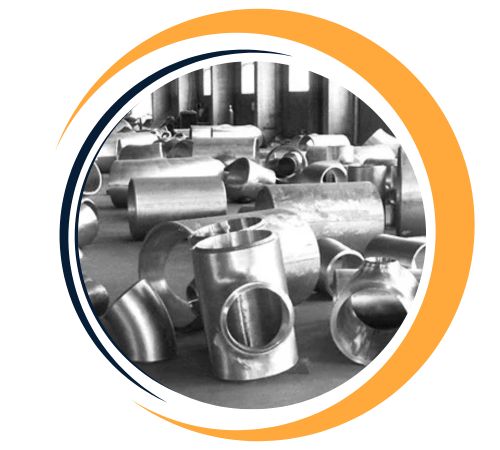

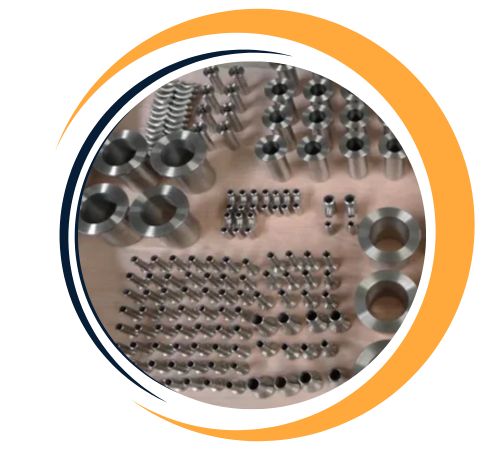

Types of Inconel 601 Buttweld Fittings

Are Custom Sizes Available for Inconel 601 Buttweld Fittings?

Yes, custom sizes for Inconel 601 Buttweld Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com

Alloy 601 Short Radius Elbow Supplier In India, Inconel 10d Pipe Bend United kingdom, Inconel WERKSTOFF NR.2.4851 Cross Exporter in Mumbai, 601 Inconel Alloy End Cap West Mumbai, Inconel 5d Pipe Bend Mumbai, Inconel 601 Pipe Elbow Mumbai, Supplier of Inconel 601 45 degree Elbow Mumbai, 601 Inconel Reducer India, ASTM B366 601 Inconel Alloy 90 degree Elbow Exporters and Suppliers in Mumbai, India.

Application Industry of Inconel 601 Buttweld Fittings

Inconel 601 Buttweld Fittings are extensively used in industries demanding better performance in corrosive and high-temperature applications. These fittings are perfectly suitable for heat treatment equipment, furnace parts, exhaust systems, petrochemical processing, and power generation applications. Their high oxidation, scaling, and carburization resistance provides them a great application in thermal processing and high-temperature gas handling systems. Inconel 601 fittings find their application in the aerospace and marine industries as well, where long-term stability and thermal resistance are necessary, supporting consistent operation in some of the toughest industrial environments.
