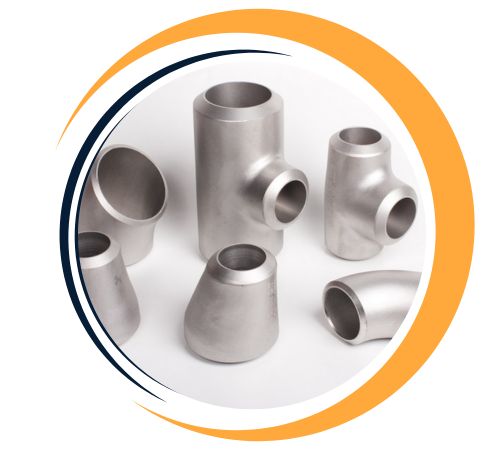

Yash Fittings, an Indian Mumbai-based company, specializes in the production and export of high-quality pipe fittings to global industries with precision-engineered products. Among their high-performing products is the Carbon Steel P235GH Pipe Fittings, which is used in pressure vessels and high-temperature service use. Produced according to EN 10216-2 specifications, the P235GH grade has superior weldability, mechanical properties, and thermal resistance. These fittings are perfect for applications that require safety, robustness, and stable performance at higher pressure and temperature levels.
| Size Range | Welded Fittings: 1/2″ – 48″ Seamless Fittings: 1/2″ – 10″ |
|---|---|
| Bending Radius | R=8D, 3D, 10D, 1D, 2D, 5D, 6D or Custom MSS Sp-43 |
| Elbows | Angle : 3D, 4D, 5D, 6D, 1.0D, 1.5D, 2.0D, 2.5D, 7D-40D . Standard: MSS SP-75 JISB2312 JISB2313, ASME B16.9, 22.5 deg, 30deg, 45 deg, 90 deg, DIN2605 JISB2311 BS, 180 deg, GB, ISO |
| Specialized manufacturer of | 90º Elbows, Tee, Stub End, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend |
| Thickness | SCH 140, SCH 160, SCH10, SCH30, STD SCH40, SCH20, XS, SCH 80, SCH60, SCH 100, SCH 120, XXS |
| Dimensions | ASME/ANSI B16.9, BS4504, ASME B16.28, MSS-SP-43, BS4504, BS1560, BS10 |
| Manufacturing process | Press, Forge, Push, Cast, etc. |
| Origin & Mills | Japanese, Korean, European, Indian, USA, Ukraine, Russian |
| Type | DN15-DN1200 |
| Connection | Welding |
| Test Certificates | Raw Materials Certificate EN 10204/3.1B Third Party Inspection Report, etc |
Carbon Steel P235GH Pipe Fittings consist of carbon, manganese, silicon, phosphorus, and sulfur. The chemical composition is good for oxidation and corrosion resistance at high temperature. Mechanically, P235GH is very good in tensile and yield strength, as well as having high ductility, enabling it to work efficiently in pressure-based systems. Physically, the fittings retain their form and integrity when subjected to thermal stress and are characterized by their good weldability, formability, and impact resistance, hence fitting for fabrication and long-term industrial applications.
| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu | – |
| max 0.16 | max 0.35 | 0.6 – 1.2 | max 0.3 | max 0.025 | max 0.015 | max 0.3 | max 0.08 | max 0.02 | max 0.012 | max 0.02 | max 0.03 | max 0.02 | max 0.3 | Cr+Cu+Mo+Ni < 0.7 |
| Nominal thickness (mm): | to 100 | 100 – 150 | 150 – 250 |
| Rm – Tensile strength (MPa) (+N) | 360-480 | 350-480 | 340-480 |
Yash Fittings is a leading supplier of Carbon Steel P235GH Pipe Fittings in Mumbai, India. We offer an extensive range of Carbon Steel P235GH Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Carbon Steel P235GH Pipe Fittings from Yash Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for Carbon Steel P235GH Pipe Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com
| EU EN | USA – | Germany DIN,WNr | Japan JIS | France AFNOR | England BS | Italy UNI | Belgium NBN | Spain UNE | China GB | Sweden SS | Poland PN | Czechia CSN | Finland SFS | Austria ONORM | Russia GOST | Inter ISO | India IS | |||||||||||||||||||||||||||||||
| P235GH |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Nominal Pipe Size | Outside Diameter | Reducers | ||
|---|---|---|---|---|
|
Reduced from
(inches) |
(mm) |
(inches) |
Reduced to
(inches) |
Concentric & Eccentric Length
(inches) |
|
1/2 |
21.3 |
0.840 |
1/4 |
1 1/2 |
|
3/8 |
1 1/2 |
|||
|
3/4 |
26.7 |
1.050 |
3/8 |
2 |
|
1/2 |
2 |
|||
|
1 |
33.4 |
1.315 |
3/8 |
2 |
|
1/2 |
2 |
|||
|
3/4 |
2 |
|||
|
1 1/4 |
42.2 |
1.660 |
1/2 |
2 |
|
3/4 |
2 |
|||
|
1 |
2 |
|||
|
1 1/2 |
48.3 |
1.900 |
1/2 |
2 1/2 |
|
3/4 |
2 1/2 |
|||
|
1 |
2 1/2 |
|||
|
1 1/4 |
2 1/2 |
|||
|
2 |
60.3 |
2.375 |
3/4 |
3 |
|
1 |
3 |
|||
|
1 1/4 |
3 |
|||
|
1 1/2 |
3 |
|||
|
2 1/2 |
73.0 |
2.875 |
1 |
3 1/2 |
|
1 1/4 |
3 1/2 |
|||
|
1 1/2 |
3 1/2 |
|||
|
2 |
3 1/2 |
|||
|
3 |
88.9 |
3.500 |
1 |
3 1/2 |
|
1 1/2 |
3 1/2 |
|||
|
2 |
3 1/2 |
|||
|
2 1/2 |
3 1/2 |
|||
|
3 1/2 |
101.6 |
4.000 |
1 1/4 |
4 |
|
1 1/2 |
4 |
|||
|
2 |
4 |
|||
|
2 1/2 |
4 |
|||
|
3 |
4 |
|||
|
4 |
114.3 |
4.500 |
1 1/2 |
4 |
|
2 |
4 |
|||
|
2 1/2 |
4 |
|||
|
3 |
4 |
|||
|
3 1/2 |
4 |
|||
|
5 |
141.3 |
5.563 |
2 |
5 |
|
2 1/2 |
5 |
|||
|
3 |
5 |
|||
|
3 1/2 |
5 |
|||
|
4 |
5 |
|||
|
6 |
168.3 |
6.625 |
2 1/2 |
5 1/2 |
|
3 |
5 1/2 |
|||
|
3 1/2 |
5 1/2 |
|||
|
4 |
5 1/2 |
|||
|
5 |
5 1/2 |
|||
|
8 |
219.1 |
8.625 |
3 |
6 |
|
3 1/2 |
6 |
|||
|
4 |
6 |
|||
|
5 |
6 |
|||
|
6 |
6 |
|||
|
10 |
273.1 |
10.750 |
4 |
7 |
|
5 |
7 |
|||
|
6 |
7 |
|||
|
8 |
7 |
|||
|
12 |
323.9 |
12.750 |
5 |
8 |
|
6 |
8 |
|||
|
8 |
8 |
|||
|
10 |
8 |
|||
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Carbon Steel P235GH Pipe Fittings find wide applications in power generation, petrochemical, oil and gas, and boiler industries. They are most suitable for high-pressure steam, hot water, and gas pipeline applications and in systems that are exposed to high temperatures. They find extensive application in heat exchangers, pressure vessels, and industrial boilers owing to their strength and thermal stability. Their weldability and durability make them a good fit for critical applications where constant performance and safety are needed over long periods of service life.
