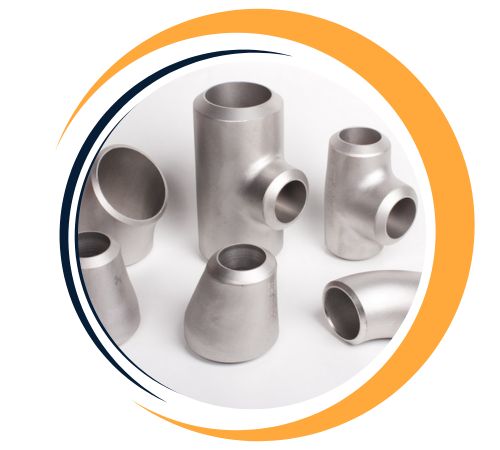

Yash Fittings is a Mumbai, India-based leading manufacturer and supplier of premium quality pipe fittings that provides custom solutions to numerous industries. The ASTM A860 WPHY 80 Pipe Fittings are one among their wide range of products, made from carbon steel that can resist high-temperature and high-pressure conditions. The WPHY 80 grade is characterized by good mechanical properties such as high tensile strength and higher resistance against corrosion. These fittings are well suited for application in severe applications where durability, strength, and dependability are required.
| Specifications | ASTM A860 / ASME SA860 |
|---|---|
| Size | 1/8” NB TO 48” NB. |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Type | Seamless / Welded / Fabricated |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
ASTM A860 WPHY 80 Pipe Fittings are produced using carbon steel with certain levels of carbon, manganese, and other alloying elements that provide outstanding mechanical strength and high-temperature oxidation resistance. The WPHY 80 grade possesses better tensile strength, and it is therefore used in high-pressure applications. It exhibits high yield strength and fatigue resistance in its mechanical properties. Physical-wise, such fittings possess high impact strength, hardness, and dimensional tolerance, allowing them to endure severe conditions without losing structural integrity, thus being appropriate for demanding industrial environments.
| Grade | C | Mn | P | S | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al |
| A860 WPHY 80 | 0.20 | 1.001-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.04 | 0.06 |
| Grade | Tensile Strenght | Yield Strenght, min. |
| A860 WPHY 80 | 66 Ksi | 52 Ksi |
Yash Fittings is a leading supplier of ASTM A860 WPHY 80 Pipe Fittings in Mumbai, India. We offer an extensive range of ASTM A860 WPHY 80 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose ASTM A860 WPHY 80 Pipe Fittings from Yash Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for ASTM A860 WPHY 80 Pipe Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
ASTM A860 WPHY 80 Pipe Fittings are widely utilized in oil and gas, petrochemical, and power generation industries. The fittings are indispensable for high-pressure pipes, where they provide leak-proof, secure connections in steam, gas, and fluid transportation systems. The durability and resistance to corrosion of the fittings, along with their high tensile strength, make them perfect for application in pipelines, refineries, and power plants, where consistency and performance at critical conditions are paramount. They are also extensively applied to offshore and subsea operations, where durability and safety are a matter of concern.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
