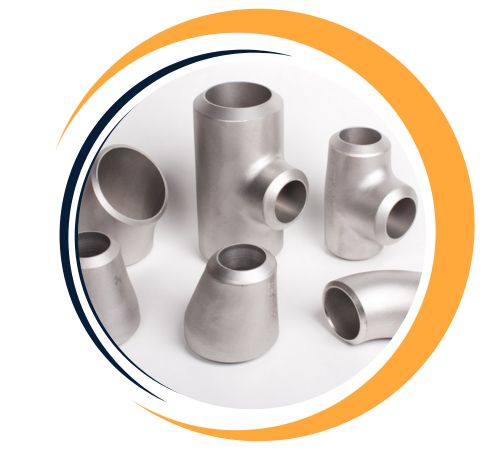

Yash Fittings, with headquarters in Mumbai, India, is a renowned maker and international distributor of quality pipe fittings for use in multiple industrial applications with dependable and long-lasting solutions. Some of their specialized products include ASTM A860 WPHY 70 Pipe Fittings, which are produced from high-strength carbon steel for application in high-pressure applications. The WPHY 70 grade is recognized for its superior mechanical properties, such as better strength and corrosion resistance. These fittings are extensively applied in challenging situations where reliable operation and extended service life are imperative.
| size | Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″ |
|---|---|
| Dimensions | BS4504, ASME B16.28, ASME/ANSI B16.9, MSS-SP-43, BS4504, BS1560, BS10 |
| Thickness | SCH20, SCH 100, SCH30, STD SCH40, SCH10, SCH60, XS, SCH 80, SCH 120, SCH 140, SCH 160, XXS |
| Type | DN15-DN1200 |
| Connection | Welding |
| Elbows Manufacturer | Angle : 1.0D, 22.5 deg, 90 deg, 30deg, 45 deg, 180 deg, 5D, 6D, 1.5D, 2.0D, 2.5D, 3D, 4D, 7D-40D . Standard: ASME B16.9, ASME B16.28, BS, GB, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, ISO |
| Manufacturing process | Press, Push, Forge, Cast, etc. |
| Surface treatment | Sand Rolling, Sand blasting, Sand Blasting |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Origin & Mills | USA, Korean, Japanese, Indian, European, Ukraine, Russian |
| Key markets and industries |
|
| Specialized Manufacturer of | Pipe Bend, Crosses, 45º Elbows, Reducers, Tees, 90º Elbows, Pipe Cap, Stub End |
ASTM A860 WPHY 70 Pipe Fittings are created out of carbon steel with thoughtfully balanced components such as carbon, manganese, and silicon. Such a composition yields enhanced corrosion resistance and chemical stability, particularly under conditions of high pressure and high temperature. Physically, mechanically, WPHY 70 fittings have high tensile and yield strength, which makes them perfect for mission-critical applications. They have better hardness, impact value, and dimensional tolerance, which guarantees longevity and performance even in extreme industrial conditions.
|
C |
Mn |
P |
S |
Si |
Ni |
Cr |
Mo |
Cu |
Ti |
V |
Cb |
Al |
|
|
A860 |
0.20 |
1.00-1.45 |
0.03 |
0.01 |
0.15-0.40 |
0.50 |
0.30 |
0.25 |
0.35 |
0.05 |
0.10 |
0.04 |
0.06 |
| Element | Tensile Strength(Min PSI) | Yield Strength (Min PSI) | Elongation(%, in 2in.) |
| WPHY 70 | 82000 PSI | 70000 PSI | 20 % |
Yash Fittings is a leading supplier of ASTM A860 WPHY 70 Pipe Fittings in Mumbai, India. We offer an extensive range of ASTM A860 WPHY 70 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose ASTM A860 WPHY 70 Pipe Fittings from Yash Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for ASTM A860 WPHY 70 Pipe Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
ASTM A860 WPHY 70 Fittings for Pipe are used extensively in oil and gas pipelines, petrochemical facilities, offshore platforms, and power generation systems. They are particularly suited to high-pressure and high-stress conditions where secure connections are needed for safety and efficiency. They find widespread application for safe transportation of oil, natural gas, steam, and other liquids in aggressive and corrosive environments. Their high strength and robustness render them perfect for ensuring system integrity and operational reliability within demanding industrial usage.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
