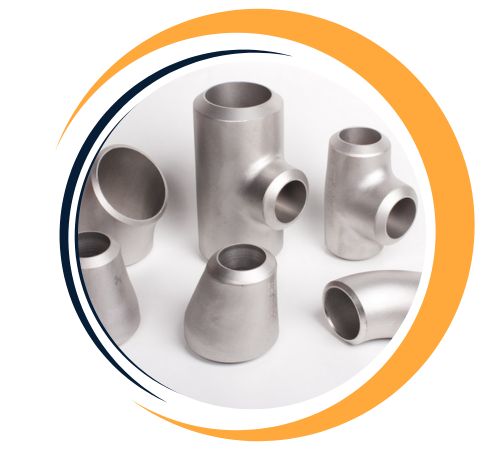

Yash Fittings, established in Mumbai, India, is a prominent manufacturer and supplier of first-rate pipe fittings characterized by precision and customer satisfaction. The company has a wide variety of products, such as Alloy Steel F9 Forged Fittings, that are engineered to withstand the stringent conditions of high-temperature and high-pressure applications. Constructed from Alloy Steel F9, these fittings boast remarkable mechanical properties, such as heightened strength and thermal fatigue resistance. Coming in different grades, Yash Fittings’ Alloy Steel F9 Forged Fittings are best suited for the petrochemical, power generation, and aerospace industries.
| Specification : | ASTM A182 F9 Forged Fittings |
|---|---|
| Size | Threaded Fittings = ½” – 4” |
| Pressure Rating | Threaded Fittings = Class 2000, Class 3000, Class 6000 |
| Type Of Pipe systems | 45 Deg Elbow, Equal tee, Full Coupling, Reducing Tee, 90 Deg Elbow, Half Coupling, Street Elbow, Bull Plug, Boss, Union (Male/Female), Lateral Outlet, 45 Lateral Tee, Equal Cross, Pipe Cap, Branch Outlets, Swage Nipple. |
| Thread Connections | ASME B16.11 (Socket Welding and Threaded) Fittings, MSS-SP-83 (Class Unions) Fittings, ASME B16.3 (Malleable Iron Fittings) Fittings, ASME B16.4 ( Gray Iron Fittings) Fittings, ASME B16.39 (Malleable Iron Unions) Fittings, ASME B16.34 (Valves — Flanged) Fittings, ASME B16.39 (Malleable Iron Pipe Unions, 150#, 250#, Or 300#) Fittings. |
| Standards | ASME B16.11 (American Standard), Bs3799, MSS SP 79, JIS B2302, MSS-SP-97 (Threadolet), MSS-SP-83 (Union), ASME B36.19 (Nipple) |
| Types Of Thread | NPT Fittings, BSPP Fittings, BSPT Fittings, PF Fittings, PT Fittings, MPT |
| Applications | Oil and Gas Chemical Power station Water Pipeline Noncritical Applications Fire Protection |
| Advantages Of | Simple Usage Easy installation Economic as cheaper |
Alloy Steel F9 Forged Fittings are produced from a high-performance chromium-molybdenum-vanadium-based alloy steel, providing them with superior characteristics for extreme usage. They are chemically resistant to scaling, corrosion, and oxidation, especially in high-temperature applications, and thus are perfect for tough industrial environments. Mechanically, they have high tensile strength, better hardness, and very good creep resistance, which enable them to sustain high-pressure and thermal stress without malfunctioning. Physically, Alloy Steel F9 Forged Fittings also have dimensional stability, wear resistance, and thermal fatigue resistance, which enable them to provide dependable performance in power plants, petrochemical plants, and other essential systems that demand durability at extreme conditions.
| Gr | C | Mn | Si | S | P | Cr | Mo |
| ASTM A182 F9 Forged Fittings | 0.15 | 0.3 – 0.6 | 0.5 – 1 | 0.03 | 0.03 | 8 – 10 | 0.9 – 1.1 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| ASTM A182 F9 Forged Fittings | 380 | 585 | 20 |
Yash Fittings is a leading supplier of Alloy Steel F9 Forged Fittings in Mumbai, India. We offer an extensive range of Alloy Steel F9 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Alloy Steel F9 Forged Fittings from Yash Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for Alloy Steel F9 Forged Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com
| STANDARD | UNS | WERKSTOFF NR. | Trade Name |
| ASTM A182 F9 Forged Fittings | K90941 | 1.7386 | 9Cr-1Mo |
| DN | NPS | Center to End NPT Elbow, NPT Tee, NPT Cross A | Center to End 45 Deg Elbow C | O.D. of Band H | Min. Wall Thick. G | Length of Thread. Minimum (1) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | B | L2 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 32 | 1-1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 40 | 1-1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 86 | 102 | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 65 | 2-1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 85 | 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
| Normal Pipe Size | A | B | QTY | Weight In KG |
|---|---|---|---|---|
| ¼ | 0.81 | 0.88 | 160 | 0.20 |
| ⁄ | 0.97 | 1.00 | 130 | 0.26 |
| ½ | 1.12 | 1.31 | 100 | 0.57 |
| ¾ | 1.31 | 1.5 | 75 | 0.71 |
| 1 | 1.5 | 1.81 | 40 | 1.08 |
| 1 ¼ | 1.75 | 2.19 | 25 | 1.68 |
| 1 ½ | 2.00 | 2.44 | 18 | 2.38 |
| 2 | 2.38 | 2.97 | 10 | 3.55 |
| 2 ½ | 3.00 | 3.62 | 4 | 6.22 |
| 3 | 3.38 | 4.31 | 2 | 10.36 |
| 4 | 4.19 | 5.75 | 1 | 23.91 |
Alloy Steel F9 Forged Fittings are extensively utilized in high strength and resistance to high pressures and extreme temperatures. Typical uses include power generation, petrochemical refineries, and steam systems, where such fittings assume a vital role in ensuring the integrity of pipelines under high pressures and high temperatures. They are used in the aerospace sector for structural parts that withstand thermal fatigue and stress. Alloy Steel F9 Forged Fittings are perfect for conditions that pose stringent operating environments, providing secure long-term performance and durability in critical applications.
