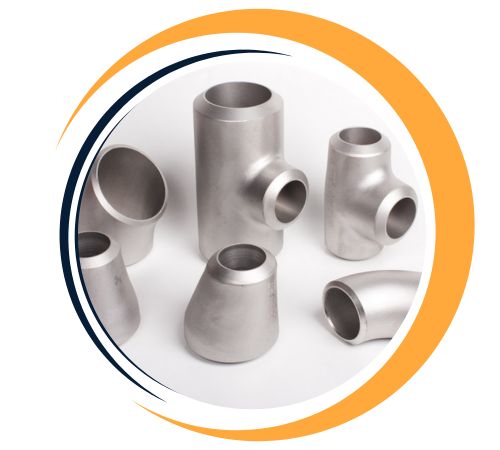

Yash Fittings, located in Mumbai, India, is one of the leading producers and suppliers of high-strength pipe fittings, dedicated to offering precision-engineered solutions for multiple industries. Among their wide range of products, the company offers Alloy Steel F5 Forged Fittings, manufactured from a high-strength, low-alloy steel that guarantees exceptional performance under harsh environments. They are sold in various grades and specifically formulated to handle high-temperature and high-pressure conditions, and they suit industries that demand hard-wearing and trustworthy piping systems
| Specification : | ASTM A182 F5 Forged Fittings |
|---|---|
| Pressure Rating | Threaded Fittings = Class 2000, Class 3000, Class 6000 |
| Type Of Pipe systems | 45 Deg Elbow, Equal tee, Full Coupling, Reducing Tee, 90 Deg Elbow, Half Coupling, Street Elbow, Bull Plug, Boss, Union (Male/Female), Lateral Outlet, 45 Lateral Tee, Equal Cross, Pipe Cap, Branch Outlets, Swage Nipple. |
| Thread Connections | ASME B16.11 (Socket Welding and Threaded), MSS-SP-83 (Class Unions), ASME B16.3 (Malleable Iron Fittings), ASME B16.4 ( Gray Iron Fittings), ASME B16.39 (Malleable Iron Unions), ASME B16.34 (Valves — Flanged), ASME B16.39 (Malleable Iron Pipe Unions, 150#, 250#, Or 300#). |
| Standards | ASME B16.11 (American Standard) Fittings, Bs3799 Fittings, MSS SP 79 Fittings, JIS B2302 Fittings, MSS-SP-97 (Threadolet) Fittings, MSS-SP-83 (Union) Fittings, ASME B36.19 (Nipple) Fittings |
| Types Of Thread | NPT Fittings, BSPP Fittings, BSPT Fittings, PF Fittings, PT Fittings, MPT Fittings |
| Applications | Oil and Gas Chemical Power station Water Pipeline Noncritical Applications Fire Protection |
| Advantages Of | Simple Usage Easy installation Economic as cheaper |
| Size | Threaded Fittings = ½” – 4” |
Alloy Steel F5 Forged Fittings consist of a mix of molybdenum, chromium, and carbon, with increased strength and resistance to heat. Chemically, they have superior oxidation and corrosion resistance, especially in high-temperature applications. Mechanically, these fittings possess superior tensile strength, high fatigue resistance, and moderate creep resistance to ensure consistent performance when under pressure. Physically, Alloy Steel F5 Forged Fittings are dimensionally stable, wear and thermal fatigue resistant, and are very tough, making them suitable for application in harsh, high-stress applications
| Gr | C | Mn | Si | S | P | Cr | Mo |
| ASTM A182 F5 Forged Fittings | 0.15 | 0.3 – 0.6 | 0.5 | 0.03 | 0.03 | 4 – 6 | 0.044 – 0.65 |
| Gr | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| ASTM A182 F5 Forged Fittings | 275 | 485 | 20 |
Yash Fittings is a leading supplier of Alloy Steel F5 Forged Fittings in Mumbai, India. We offer an extensive range of Alloy Steel F5 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yes, custom sizes for Alloy Steel F5 Forged Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com
| STANDARD | UNS | WERKSTOFF NR. | Trade Name |
| ASTM A182 F5 Forged Fittings | K41545 | 1.7362 | 5Cr-1/2Mo |
| DN | NPS | Center to End NPT Elbow, NPT Tee, NPT Cross A | Center to End 45 Deg Elbow C | O.D. of Band H | Min. Wall Thick. G | Length of Thread. Minimum (1) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | Class 2000 | Class 3000 | Class 6000 | B | L2 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 32 | 1-1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 40 | 1-1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 86 | 102 | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 65 | 2-1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 85 | 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
| Normal Pipe Size | A | B | QTY | Weight In KG |
|---|---|---|---|---|
| ¼ | 0.81 | 0.88 | 160 | 0.20 |
| ⁄ | 0.97 | 1.00 | 130 | 0.26 |
| ½ | 1.12 | 1.31 | 100 | 0.57 |
| ¾ | 1.31 | 1.5 | 75 | 0.71 |
| 1 | 1.5 | 1.81 | 40 | 1.08 |
| 1 ¼ | 1.75 | 2.19 | 25 | 1.68 |
| 1 ½ | 2.00 | 2.44 | 18 | 2.38 |
| 2 | 2.38 | 2.97 | 10 | 3.55 |
| 2 ½ | 3.00 | 3.62 | 4 | 6.22 |
| 3 | 3.38 | 4.31 | 2 | 10.36 |
| 4 | 4.19 | 5.75 | 1 | 23.91 |
Alloy Steel F5 Forged Fittings are extensively used in high-pressure and high-temperature applications in industries that demand strong performance. Power generation plants, chemical refineries, and petrochemical industries use these fittings in critical equipment such as steam lines, reactors, and heat exchangers. Their superior durability against oxidation, corrosion, and thermal fatigue makes them the best choice for conditions exposed to extreme operational stresses, which guarantee long-term dependability and reduce maintenance requirements for harsh industrial processes.
