Yash Fittings, established in Mumbai, India, is a renowned name when it comes to supplying high-grade industrial fittings, recognized for providing precision-engineered solutions to clients around the world. Among their offerings, Titanium Gr 2 Pipe Fittings are appreciated for their high resistance to corrosion, lightweight quality, and high strength-to-weight ratio. Grade 2 titanium is commercially pure and highly favored for its formability as well as moderate strength. Yash Fittings makes sure that these pipe fittings are of international standards, providing reliability and long-lasting performance in harsh environments.
Standard : ASTM B363 / ASME SB363
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2″ to 24″ NB to 24″NB in
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Type : Seamless / Welded / Fabricated

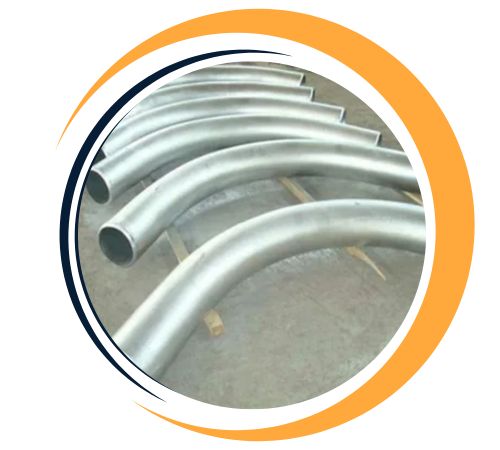

Bending Radius :R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr 2 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
Titanium Gr 2 Pipe Fittings have a balanced mix of chemical, mechanical, and physical properties. Chemically, they are made up of 99.2% pure titanium with traces of iron, oxygen, and other elements, which provide superior corrosion resistance in oxidizing and mildly reducing conditions. Mechanically, they provide moderate tensile strength (around 344 MPa), good ductility, and good impact toughness. Physically, these fittings are light in weight with low density, high melting point, and good thermal conductivity, and hence are suitable for applications
Yash Fittings is a leading supplier of Titanium Gr 2 Pipe Fittings in Mumbai, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Gr 2 Pipe Fittings from Yash Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Titanium Grade 2 Pipe Fittings offer numerous advantages, including exceptional corrosion resistance, especially in harsh environments like seawater, chemicals, and high temperatures. They are lightweight yet strong, making them ideal for industries such as marine, aerospace, and chemical processing. Titanium Gr 2 fittings also exhibit excellent fatigue and stress corrosion cracking resistance, ensuring long-lasting performance. Additionally, they are highly biocompatible, making them suitable for medical applications. With superior strength-to-weight ratio and durability, these fittings provide reliable, cost-effective solutions for demanding and corrosive applications.

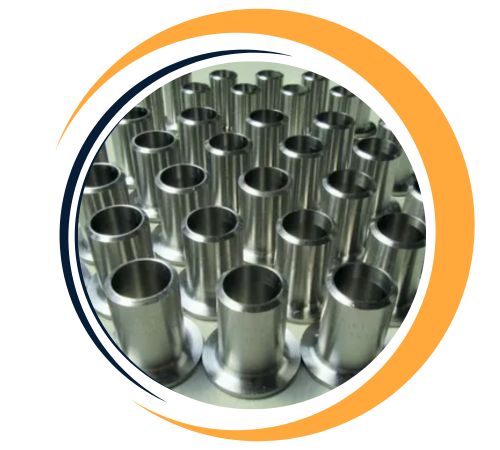

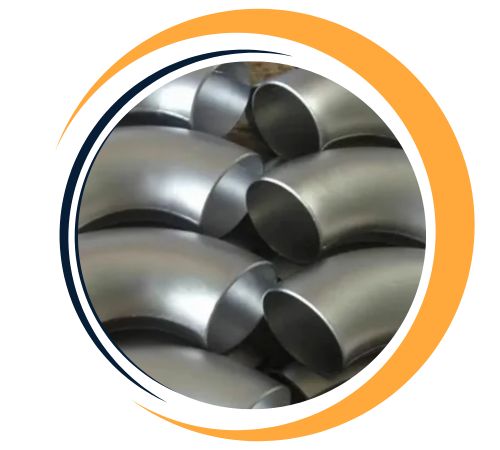

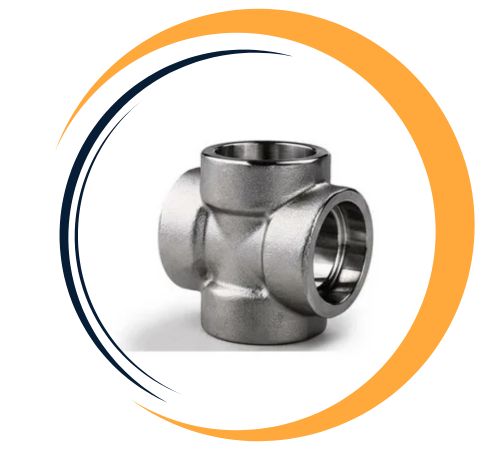

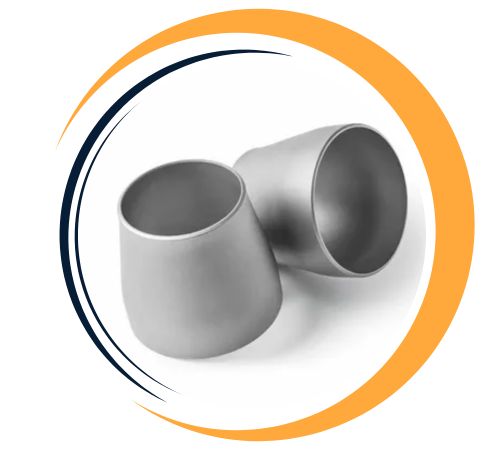

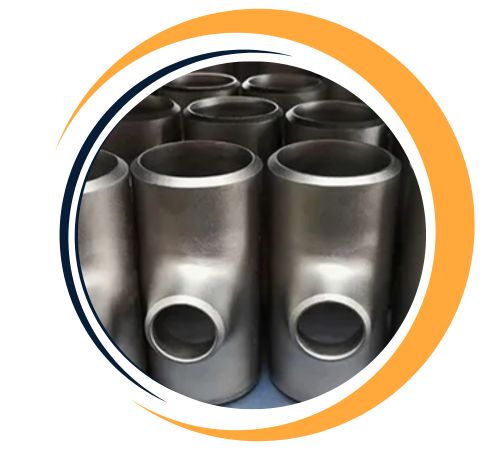

| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings | Titanium Alloy Gr2 Long Radius Elbows, Long Radius Reducing Elbows, Titanium Gr2 Long Radius Returns, Titanium Gr2 Short Radius Elbows, Titanium Gr 2 Short Radius 180-deg Rerurns, Titanium Gr 2 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Titanium Gr 2 Lap Joint Stub Ends, Titanium Gr 2 Caps, Reducers |
| ASME B16.28 | Gr2 Titanium Alloy Short Radius Elbows, Titanium Gr 2 Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Titanium Gr 2 Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, Gr2 Titanium Gr 2 caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| Mss SP75 | Titanium Gr 2 Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, Gr2 Titanium Alloy reducers |
Yes, custom sizes for Titanium Gr 2 Pipe Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com
Titanium Gr 2 Pipe Fittings find extensive applications across diverse sectors owing to their corrosion resistance, high strength, and low weight. Typical uses are chemical processing, marine and offshore platforms, desalination facilities, medical devices, heat exchangers, and aerospace parts. They are well suited for conveying extremely corrosive fluids and gases, particularly in chloride-contaminated or acidic mediums. Their high-temperature and pressure excellence, along with long lifespan and low maintenance requirements, make them a top selection for high-performance and critical industrial systems.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
