Yash Fittings, established in Mumbai, India, is a prominent manufacturer and supplier of high-quality piping solutions, dealing specifically in Titanium Buttweld Fittings. Acclaimed for precision engineering and robustness, the fittings are provided in different grades, such as Grade 2 and Grade 5, providing superior corrosion resistance and high strength-to-weight ratio. Yash Fittings deals with both domestic and international customers, offering products that are assured of quality to global standards for industries such as petrochemical, marine, and aerospace. pipe fittings and valves. With a strong commitment to excellence, we provide a wide range of products, including precision-engineered Titanium Buttweld Fittings, known for their exceptional strength and corrosion resistance. Serving industries such as aerospace, marine, and chemical, we ensure top-tier performance and reliability in every product. Our dedicated team delivers tailored solutions to meet the specific needs of our clients.
Specifications : ASTM B363 / ASME SB363
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2″ to 24″ NB to 24″NB in
Type : Seamless / Welded / Fabricated
Schedule : SCH 10, SCH20, SCh20, SCh30
Grades : Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Titanium Buttweld Fittings have outstanding chemical stability, with high resistance to corrosion in oxidizing and mildly reducing environments because of a stable oxide film. They are mechanically strong, resistant to fatigue, and lightweight, especially in Grade 5, which is stronger in tensile strength. Physically, titanium is low in density, has good biocompatibility, and can resist extreme temperatures, making it suitable for demanding applications that need both strength and performance under harsh conditions.
Titanium Buttweld Fittings show very good chemical stability, with high resistance to corrosion under oxidizing and slightly reducing conditions by a stable oxide coating. Mechanically, they provide very good strength, fatigue life, and light weight, especially in Grade 5, which possesses greater tensile strength. Physically, titanium is very light in weight with good biocompatibility and can also tolerate very harsh temperatures, thus proving very suitable for high-demand applications where both the strength and performance are needed under harsh conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Buttweld Fittings from yash fitttings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Titanium Buttweld Fittings offer several key advantages, making them ideal for demanding applications. They provide exceptional corrosion resistance, especially in harsh environments like seawater, chemicals, and high temperatures. Titanium’s high strength-to-weight ratio ensures durability while maintaining lightweight properties. These fittings also offer excellent fatigue and stress resistance, enhancing long-term performance. Titanium’s biocompatibility makes it suitable for medical and aerospace applications. Additionally, their superior weldability allows for secure and reliable connections, reducing maintenance costs and extending the lifespan of piping systems in industries like aerospace, marine, and chemical processing.
| Products | Size | |

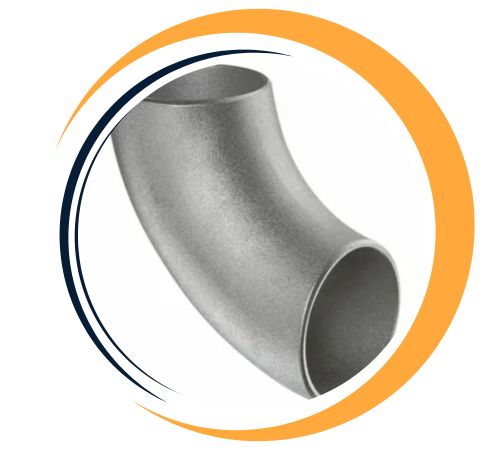

| Titanium Elbow – Long Radius | Titanium Stub Ends | Sizes 1/2″ – 24″ |

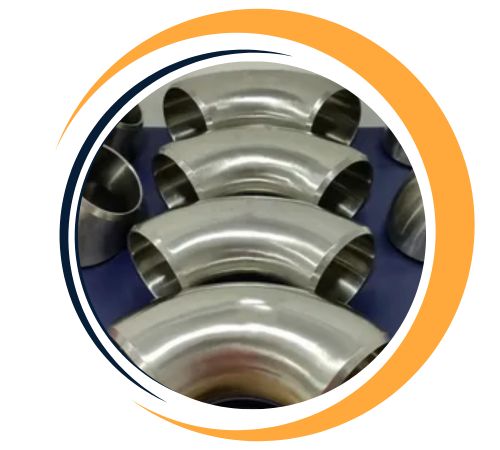

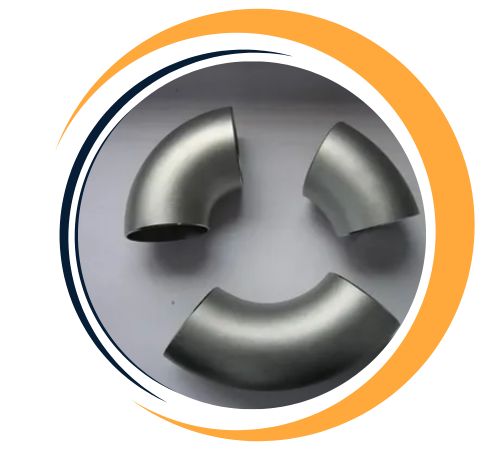

| Titanium Elbow – Short Radius | Titanium Cross | |
| Titanium Reducing Elbow | Titanium Reducing Cross | |
| Titanium 45° Elbow | Titanium Tees | |
| Titanium Fabricated Tee | Titanium End Cap | |
| Titanium Reducer | Titanium Seamless Fittings | |
| Titanium Concentric Reducer | Titanium Pipe Nipple | |
| Titanium Eccentric Reducer | Titanium 5D Elbow | |
| Titanium 3D Elbow | Titanium Welded Pipe Fittings | |
Yes, custom sizes for Titanium Buttweld Fittings are available at yash fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com
Titanium Buttweld Fittings are widely used in industries where corrosion resistance and high performance are critical. In aerospace, they are used for structural components and fuel systems due to their strength and lightness. The marine industry uses them in seawater applications, while chemical processing plants rely on them for handling corrosive substances. These fittings are also used in power generation, desalination, and medical devices, making them a versatile choice for both critical and everyday operations.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
