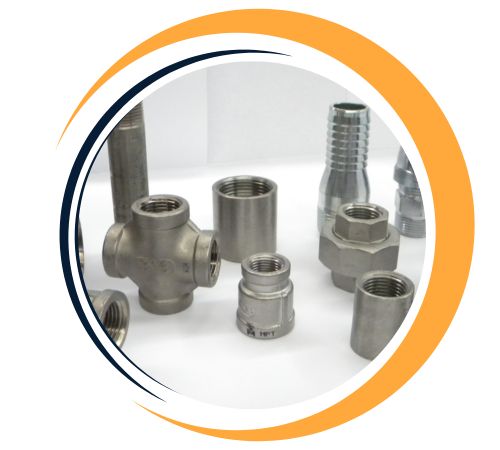

Yash Fittings, based in Mumbai, India, is a reputable manufacturer and exporter of high-performance piping fittings, renowned for providing precision-engineered solutions to global industries. One of its top-of-the-line products is Super Duplex Steel Forged Fittings, which is produced from grades such as UNS S32750 and S32760. These fittings are designed with exceptional strength and resistance to corrosion, especially in tough environments. Merging the advantages of ferritic and austenitic stainless steels, Super Duplex forged fittings have good weldability, high mechanical strength, and excellent resistance to stress corrosion cracking and pitting.
Specifications : ASTM A182 / ASME SA182
Size : 1/2″NB TO 4″NB IN
Class : 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc.

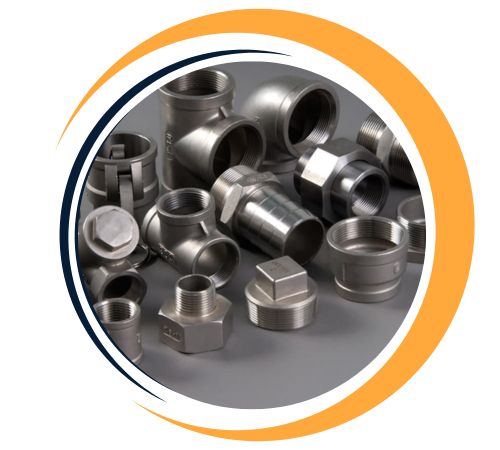

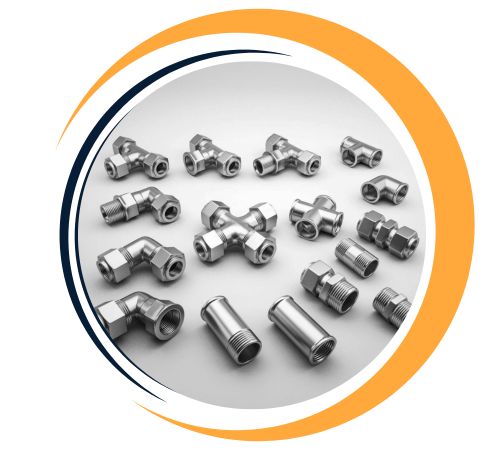

Type : Socket Weld (S/W) and SCREWED (SCRD) – NPT, BSP, BSPT, Threaded Fittings
Super Duplex Steel Forged Fittings have a special combination of chemical, mechanical, and physical properties. Chemically, they are composed of high chromium (approximately 25%), nickel (6–8%), and molybdenum (3–4%) content with additions of nitrogen, which improves their resistance to chloride-induced corrosion. Mechanically, they possess extremely high tensile strength (usually around 800 MPa) and yield strength (at least 550 MPa), with good ductility and impact resistance. Physically, these fittings possess a density of about 7.8 g/cm³ and function well in low and high-temperature conditions because of their high thermal stability.
| UNS | Grade | C | Si | Mn | P | S | Cr | Mo | Ni | N | Other |
| S32750 | 2507 | 0.030 | 0.80 | 1.20 | 0.035 | 0.020 | 24.0/26.0 | 3.0/5.0 | 6.00/8.00 | 0.24/0.32 | Cu:0.50 |
| UNS | Grade | Proof Stress 0.2% (MPa) | Tensile Strength (MPa) | Elongation A5(%) | Hardness Max | |
| HB | HRB | |||||
| S32750 | 2507 | 550 | 795 | 15 | 310 | 32* |
Yash Fittings is a leading supplier of Super Duplex Steel Forged Fittings in Mumbai, India. We offer an extensive range of Super Duplex Steel Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WERKSTOFF NR. |
| Super Duplex S2750 | S32750 | 1.4410 |
Choose Super Duplex Steel Forged Fittings from Yash Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Super Duplex Steel Forged Fittings offer several key advantages, including exceptional resistance to corrosion, especially in chloride and seawater environments, making them ideal for marine and chemical processing applications. Their high strength-to-weight ratio ensures durability and reliability even in high-pressure systems. These fittings also resist stress corrosion cracking, pitting, and crevice corrosion. With excellent weldability and toughness at both high and low temperatures, Super Duplex Steel Forged Fittings provide superior performance in harsh conditions, extending the life of the equipment and reducing maintenance costs.
Yes, custom sizes for Super Duplex Steel Forged Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| DN (Normal Pipe Size) For ASME B16.9 | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Super Duplex Steel Forged Fittings are extensively utilized in offshore oil and gas, chemical processing, marine, and desalination industries because of their high strength and corrosion resistance. These fittings are best suited for high-pressure and corrosive systems, such as pipelines, manifolds, heat exchangers, and valves subjected to seawater and aggressive chemicals. Their capability to endure extreme conditions without sacrificing structural integrity places them as a solid option for critical applications where both durability and mechanical and chemical stress resistance are required.
