Yash Fittings is a reputable brand in the piping sector, recognized for providing top-quality pipe fittings and industrial parts that conform to international standards. Among their wide range of products, reducing outlet tees are notable for their accurate engineering and long lifespan. These tees are specifically designed to join pipes of varying diameters, providing even flow distribution in intricate piping systems. Yash Fittings supplies reducing outlet tees in different grades, such as Grade 80 and Grade 90, with excellent strength, corrosion resistance, and durability over demanding uses.
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Size: 1/2″ to 36″
Form: Butt weld Reducing Tee and Crosses, Fitting Outlet Reducing Tee and Crosses
Reducing outlet tees have a mix of chemical, mechanical, and physical characteristics that suit them perfectly for industrial piping systems. Chemically, they are usually constructed from stainless steel or alloy-based materials which provide superior resistance to corrosion, oxidation, and chemical reactions even in hostile environments. Mechanically, reducing outlet tees have high tensile strength, ruggedness, and resistance to impacts, which promise stable performance under high pressure and temperature conditions. Physically, minimizing outlet tees are crafted with utmost precision to provide snug fittings, smooth flow of fluids, and dimensional integrity, hence ideal for many important applications.

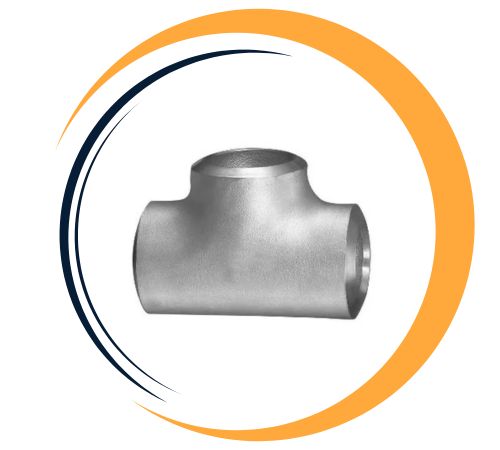

Stainless Steel Buttweld Reducing Tees & Crosses : ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

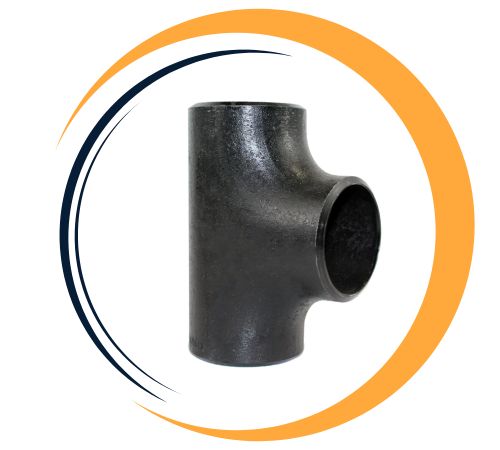

Carbon Steel Buttweld Reducing Tees & Crosses : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

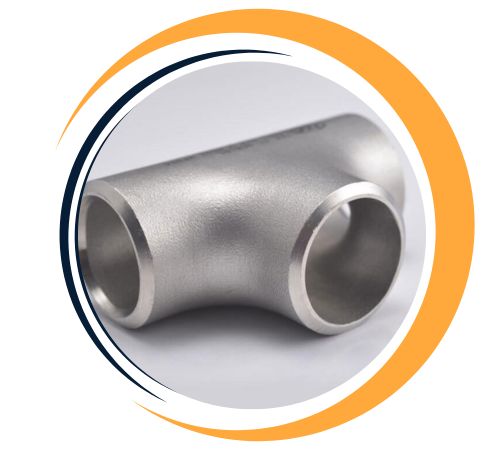

Alloy Steel Buttweld Reducing Tees & Crosses : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91

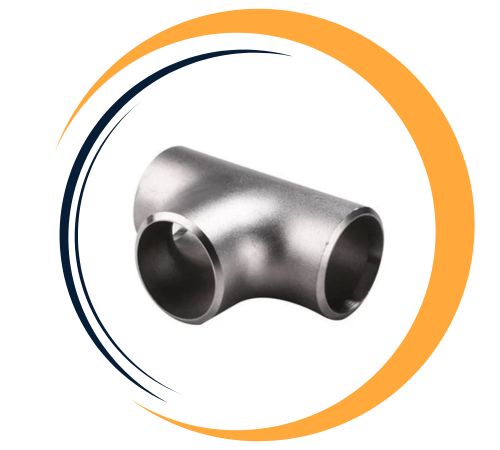

Duplex Steel Buttweld Reducing Tees & Crosses : ASTM A815, ASME SA815 UNS No S31803, S32205

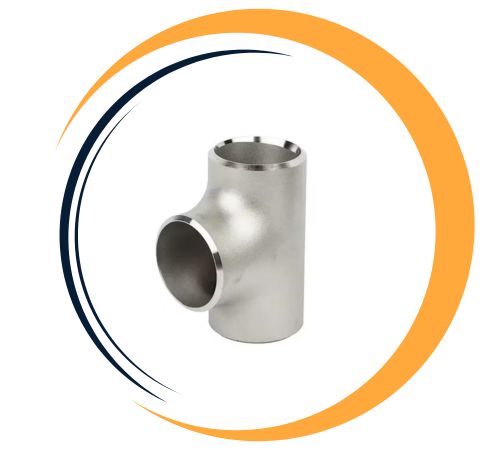

Super Duplex Buttweld Reducing Tees & Crosses : ASTM A815, ASME SA815 UNS No S32750, S32950

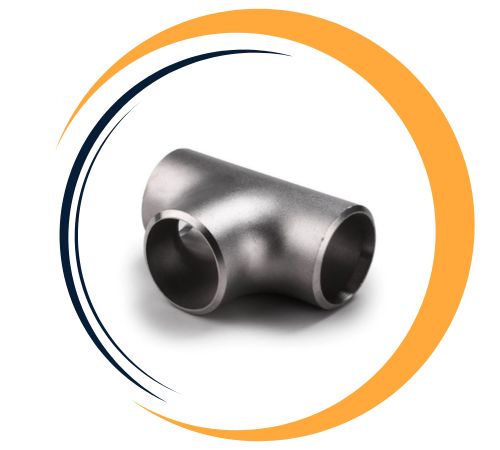

Nickel Alloy Buttweld Reducing Tees & Crosses : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
Low Temperature Carbon Steel Buttweld Reducing Tees & Crosses : ASTM A420 WPL3, A420 WPL6
Yash Fittings is a leading supplier of Reducing Outlet Tees in Mumbai, India. We offer an extensive range of Reducing Outlet Tees, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Reducing Outlet Tees from Yash Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for Reducing Outlet Tees are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com
| Nominal Pipe Size (NPS) | DN | Outlet Diameter at Bevel | Center- to-End | ||
| Run | Outlet | Run.C | Outlet. M[Notes(1)] | ||
| 1/2*1/2*3/8 | 15*15*10 | 21.3 | 17.3 | 25 | 25 |
| 1/2*1/2*1/4 | 15*15*8 | 21.3 | 13.7 | 25 | 25 |
| 3/4*3/4*1/2 | 20*20*15 | 26.7 | 21.3 | 29 | 29 |
| 3/4*3/4*3/8 | 20*20*10 | 26.7 | 17.3 | 29 | 29 |
| 1*1*3/4 | 25*25*20 | 33.4 | 26.7 | 38 | 38 |
| 1*1*1/2 | 25*25*15 | 33.4 | 21.3 | 38 | 38 |
| 1-1/4*1-1/4*1 | 32*32*25 | 42.2 | 33.4 | 48 | 48 |
| 1-1/4*1-1/4*3/4 | 32*32*20 | 42.2 | 26.7 | 48 | 48 |
| 1-1/4*1-1/4*1/2 | 32*32*15 | 42.2 | 21.3 | 48 | 48 |
| 1-1/2*1-1/2*1-1/4 | 40*40*32 | 48.3 | 42.2 | 57 | 57 |
| 1-1/2*1-1/2*1 | 40*40*25 | 48.3 | 33.4 | 57 | 57 |
| 1-1/2*1-1/2*3/4 | 40*40*20 | 48.3 | 26.7 | 57 | 57 |
| 1-1/2*1-1/2*1/2 | 40*40*15 | 48.3 | 21.3 | 57 | 57 |
| 2*2*1-1/2 | 50*50*40 | 60.3 | 48.3 | 64 | 60 |
| 2*2*1-1/4 | 50*50*32 | 60.3 | 42.2 | 64 | 57 |
| 2*2*1 | 50*50*25 | 60.3 | 33.4 | 64 | 51 |
| 2*2*3/4 | 50*50*20 | 60.3 | 73.0 | 64 | 44 |
| 2-1/2*2-1/2*2 | 65*65*50 | 73.0 | 60.3 | 76 | 70 |
| 2-1/2*2-1/2*1-1/2 | 65*65*40 | 73.0 | 48.3 | 76 | 67 |
| 2-1/2*2-1/2*1-1/4 | 65*65*32 | 73.0 | 42.2 | 76 | 64 |
| 2-1/2*2-1/2*1 | 65*65*25 | 73.0 | 88.9 | 76 | 57 |
| 3*3*2-1/2 | 80*80*65 | 88.9 | 73.0 | 86 | 83 |
| 3*3*2 | 80*80*50 | 88.9 | 60.3 | 86 | 76 |
| 3*3*1-1/2 | 80*80*40 | 88.9 | 48.3 | 86 | 73 |
| 3*3*1-1/4 | 80*80*32 | 88.9 | 101.6 | 86 | 70 |
| 3-1/2*3-1/2*3 | 90*90*80 | 101.6 | 88.9 | 95 | 92 |
| 3-1/2*3-1/2*2-1/2 | 90*90*65 | 101.6 | 73.0 | 95 | 89 |
| 3-1/2*3-1/2*2 | 90*90*50 | 101.6 | 60.3 | 95 | 83 |
| 3-1/2*3-1/2*1-1/2 | 90*90*40 | 101.6 | 48.3 | 95 | 79 |
| 4*4*3-1/2 | 100*100*90 | 114.3 | 101.6 | 105 | 102 |
| 4*4*3 | 100*100*80 | 114.3 | 88.9 | 105 | 98 |
| 4*4*2-1/2 | 100*100*65 | 114.3 | 73.0 | 105 | 95 |
| 4*4*2 | 100*100*50 | 114.3 | 60.3 | 105 | 89 |
| 4*4*1-1/2 | 100*100*40 | 114.3 | 48.3 | 105 | 86 |
| 5*5*4 | 125*125*100 | 141.3 | 114.3 | 124 | 117 |
| 5*5*3-1/2 | 125*125*90 | 141.3 | 101.6 | 124 | 114 |
| 5*5*3 | 125*125*80 | 141.3 | 88.9 | 124 | 111 |
| 5*5*2-1/2 | 125*125*65 | 141.3 | 73.6 | 124 | 108 |
| 5*5*2 | 125*125*50 | 141.3 | 60.3 | 124 | 105 |
Reducing outlet tees are commonly utilized in piping systems to effectively connect pipes of different diameters to provide smooth and controlled fluid flow. They play a critical role in industries like oil and gas, petrochemicals, power generation, and water treatment, where branching of pipelines is necessary. Reducing outlet tees assist in controlling flow direction and minimizing turbulence while preserving system integrity. Their strong construction enables them to resist high pressure and temperature, which makes them suitable for both above-ground and underground installation in complicated and challenging industrial conditions.
