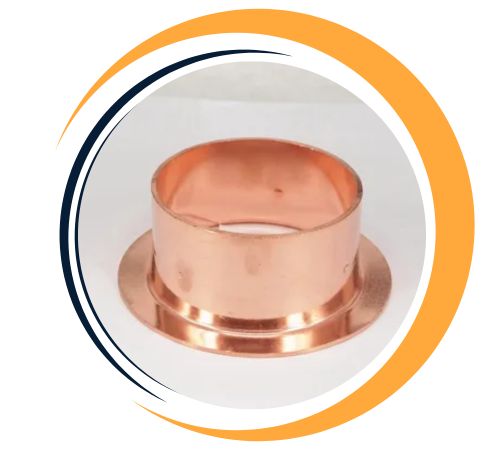

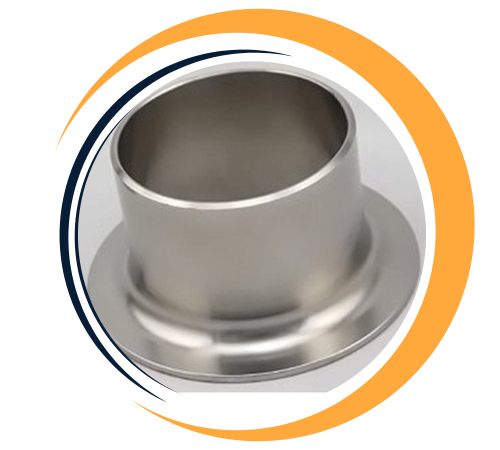

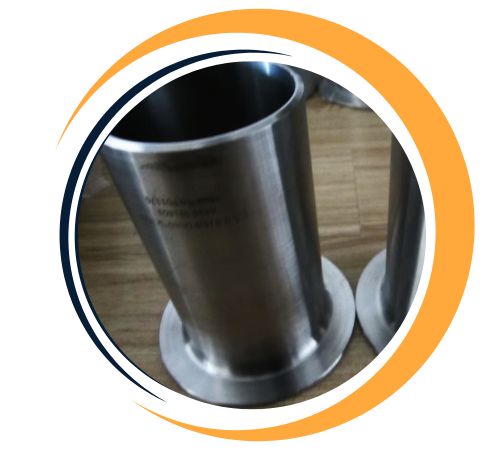

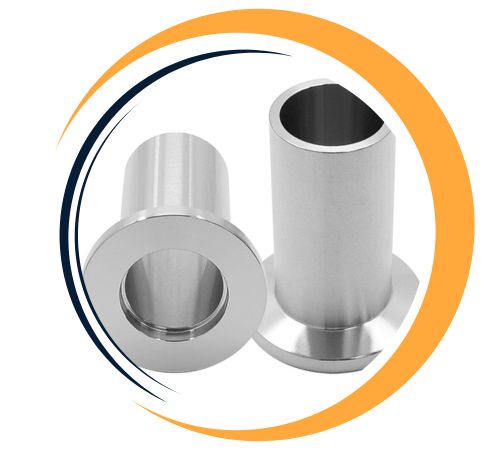

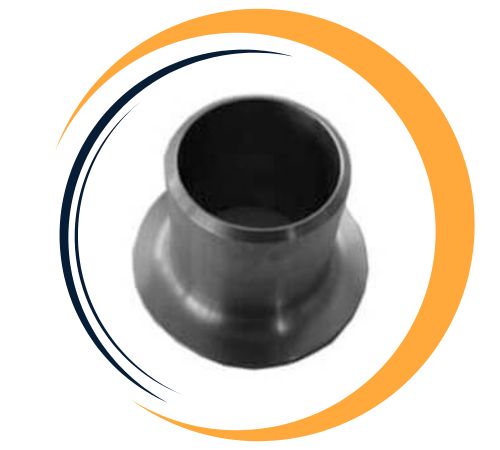

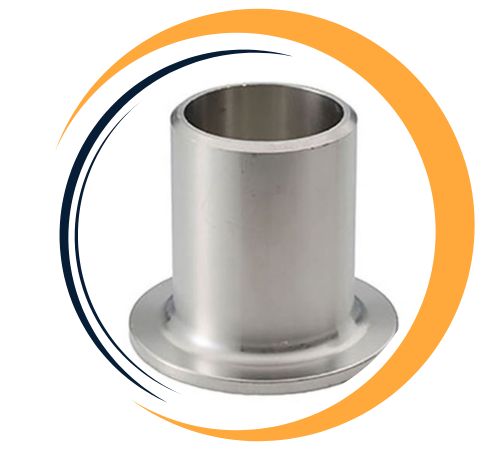

Yash Fittings, a Mumbai, India-based company, is a prominent manufacturer and supplier of precision and reliable high-quality pipe fittings. The firm deals in a variety of products, such as Long and Short Stub Bends, used for the purpose of easy directional changes in a piping system. All the bends are provided in diverse grades, which provide strength and resistance for fluid transportation throughout industrial systems. Yash Fittings’ Long and Short Stub Bends are utilized in critical applications that demand effective fluid flow, corrosion resistance, and durable performance.
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2″NB TO 36 “NB IN
Type : Seamless / ERW / Welded / Fabricated
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Form : Long Stub Ends, Pipe Stub Ends, Butt weld Long Stub Ends.
| Short pattern stub end Pipe Fittings size | Seamless Butt Weld Fittings: 1/2″ – 10″ Welded Butt Weld Fittings: 1/2″ – 48″ |
|---|---|
| Specifications | ASME B16.9 Short stub end |
| Short type stub end Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| lap joint stub end Short pattern Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Short stub ends Types | Seamless / ERW / Welded / Fabricated Pipe Fittings |
| Short spigot stub end Type | DN15-DN1200 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| Application |
|
| Short type stub end Fittings | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Product (Type “C”) | Length (J) | NPS | Sch 5S Approx. Weight | O.D. | Sch 5S, Wall Thick. (T) | Sch 5S, Inside Dia. (I.D.) |
|---|---|---|---|---|---|---|
| 1 1/2″ | 2 | 1.5 | 0.29 | 1.9 | 0.065 | 1.77 |
| 1 1/4″ | 2 | 1.25 | 0.21 | 1.66 | 0.065 | 1.53 |
| 1″ | 2 | 1 | 0.19 | 1.315 | 0.065 | 1.185 |
| 1/2″ | 2 | 0.5 | 0.13 | 0.84 | 0.065 | 0.71 |
| 10″ | 5 | 10 | 7.48 | 10.75 | 0.134 | 10.482 |
| 12″ | 6 | 12 | 15 | 12.75 | 0.156 | 12.438 |
| 14″ | 6 | 14 | 19.2 | 14 | 0.156 | 13.688 |
| 16″ | 6 | 16 | 23.9 | 16 | 0.165 | 15.67 |
| 18″ | 6 | 18 | 28.5 | 18 | 0.165 | 17.67 |
| 2 1/2″ | 2.5 | 2.5 | 0.75 | 2.875 | 0.083 | 2.709 |
| 2″ | 2.5 | 2 | 0.44 | 2.375 | 0.065 | 2.245 |
| 20″ | 6 | 20 | 36.3 | 20 | 0.188 | 19.624 |
| 24″ | 6 | 24 | 56 | 24 | 0.218 | 23.564 |
| 3″ | 2.5 | 3 | 0.94 | 3.5 | 0.083 | 3.334 |
| 3/4″ | 2 | 0.75 | 0.14 | 1.05 | 0.065 | 0.92 |
| 4″ | 3 | 4 | 1.38 | 4.5 | 0.083 | 4.334 |
| 5″ | 3 | 5 | 2.06 | 5.563 | 0.109 | 5.345 |
| 6″ | 3.5 | 6 | 2.75 | 6.625 | 0.109 | 6.407 |
| 8″ | 4 | 8 | 3.88 | 8.625 | 0.109 | 8.407 |
| Product (Type “A“) | NPS | Length (F), Short | Diameter(G) | I.D. | Wall Thick. (T) | O.D. | Thickness (t) | XX Strong Wall Approx. Weights | XX Strong Wall, Inside Dia (I.D.) |
|---|---|---|---|---|---|---|---|---|---|
| 1 1/2″ | 1.5 | 2 | 2.875 | 1.338 | 0.281 | 1.9 | 0.281 | 2.98 | 1.1 |
| 1 1/2″ | 1.5 | 4 | 2.875 | 0.15 | 1.49 | 1.9 | 0.15 | 1.5 | 0.2 |
| 1 1/4″ | 1.25 | 2 | 2.5 | 1.16 | 0.25 | 1.66 | 0.25 | 2.52 | 0.896 |
| 1 1/4″ | 1.25 | 4 | 2.5 | 0.14 | 1.26 | 1.66 | 0.14 | 1.278 | 0.191 |
| 1″ | 1 | 2 | 2 | 0.815 | 0.25 | 1.315 | 0.25 | 1.76 | 0.599 |
| 1″ | 1 | 4 | 2 | 0.133 | 0.88 | 1.315 | 0.133 | 0.957 | 0.179 |
| 1/2″ | 0.5 | 2 | 1.375 | 0.464 | 0.188 | 0.84 | 0.187 | 0.68 | 0.252 |
| 1/2″ | 0.5 | 3 | 1.375 | 0.109 | 0.34 | 0.84 | 0.109 | 0.546 | 0.147 |
| 10″ | 10 | 5 | 12.75 | 8.5 | 1.125 | 10.75 | 1.125 | – | – |
| 10″ | 10 | 10 | 12.75 | 0.365 | 54 | 10.75 | 0.365 | 9.75 | 0.5 |
| 12″ | 12 | 6 | 15 | 10.126 | 1.312 | 12.75 | 1.312 | – | – |
| 12″ | 12 | 10 | 15 | 0.375 | 64.5 | 12.75 | 0.375 | 11.75 | 0.5 |
| 14″ | 14 | 12 | 16.25 | 0.375 | 84 | 14 | 0.375 | 13 | 0.5 |
| 16″ | 16 | 12 | 18.5 | 0.375 | 98 | 16 | 0.375 | 15 | 0.5 |
| 18″ | 18 | 12 | 21 | 0.375 | 136 | 18 | 0.375 | 17 | 0.5 |
| 2 1/2″ | 2.5 | 2.5 | 4.125 | 2.125 | 0.375 | 2.875 | 0.375 | 8.8 | 1.771 |
| 2 1/2″ | 2.5 | 6 | 4.125 | 0.203 | 4.4 | 2.875 | 0.203 | 2.323 | 0.276 |
| 2″ | 2 | 2.5 | 3.625 | 1.689 | 0.343 | 2.375 | 0.343 | 6.1 | 1.503 |
| 2″ | 2 | 6 | 3.625 | 0.154 | 3.05 | 2.375 | 0.154 | 1.939 | 0.218 |
| 20″ | 20 | 12 | 23 | 0.375 | 157 | 20 | 0.375 | 19 | 0.5 |
| 3 1/2″ | 3.5 | 3 | 5.5 | – | – | 4 | – | 15.5 | 2.728 |
| 3 1/2″ | 3.5 | 6 | 5.5 | 0.226 | 7.75 | 4 | 0.226 | 3.364 | 0.318 |
| 3″ | 3 | 2.5 | 5 | 2.624 | 0.438 | 3.5 | 0.438 | 9.8 | 2.3 |
| 3″ | 3 | 6 | 5 | 0.216 | 6.5 | 3.5 | 0.216 | 2.9 | 0.3 |
| 3/4″ | 0.75 | 2 | 1.688 | 0.612 | 0.219 | 1.05 | 0.218 | 0.94 | 0.434 |
| 3/4″ | 0.75 | 3 | 1.688 | 0.113 | 0.47 | 1.05 | 0.113 | 0.742 | 0.154 |
| 4″ | 4 | 3 | 6.188 | 3.438 | 0.531 | 4.5 | 0.531 | 19.3 | 3.152 |
| 4″ | 4 | 6 | 6.188 | 0.237 | 9.65 | 4.5 | 0.237 | 3.826 | 0.337 |
| 5″ | 5 | 3 | 7.313 | 4.313 | 0.625 | 5.563 | 0.625 | 32.66 | 4.063 |
| 5″ | 5 | 8 | 7.313 | 0.258 | 16.33 | 5.563 | 0.258 | 4.813 | 0.375 |
| 6″ | 6 | 3.5 | 8.5 | 5.187 | 0.719 | 6.625 | 0.718 | 45.26 | 4.897 |
| 6″ | 6 | 8 | 8.5 | 0.28 | 22.63 | 6.625 | 0.28 | 5.761 | 0.432 |
| 8″ | 8 | 4 | 10.625 | 6.813 | 0.906 | 8.625 | 0.906 | 59.71 | 6.875 |
| 8″ | 8 | 8 | 10.625 | 0.322 | 34.12 | 8.625 | 0.322 | 7.625 | 0.5 |
Yash Fittings one of the largest suppliers of Long and Short Stub Bend in Mumbai, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Long and Short Stub Bend is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Long and Short Stub Bend in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Long and Short Stub Bend from Yash Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Yes, custom sizes are available for Long and Short Stub Bend to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@yashfittings.com
Long and Short Stub Bends find applications in most chemical processing, oil and gas, and power generation industries where piping systems require direction changes. The Long Stub Bend is best suited for large radius applications with smooth fluid flow and minimal resistance, whereas the Short Stub Bend is employed where space is a constraint and there is a need for sharp direction changes. These bends play a crucial role in steam systems, water treatment facilities, and HVAC systems to provide optimal fluid handling and system efficiency in harsh industrial environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
