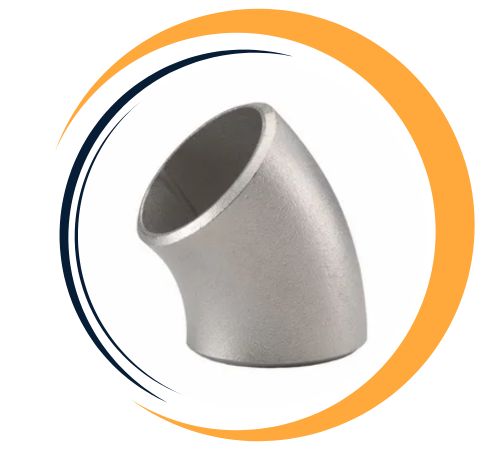

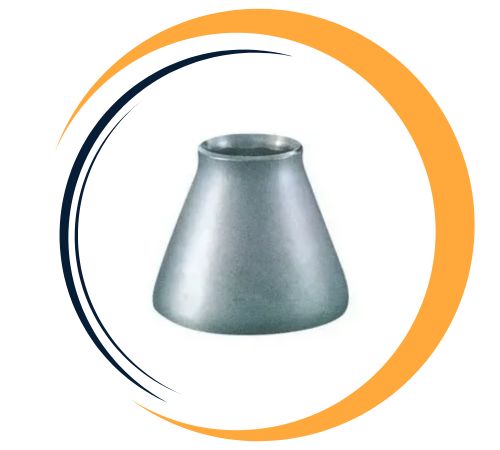

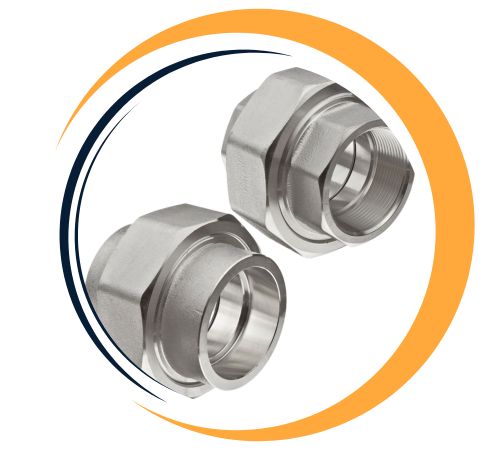

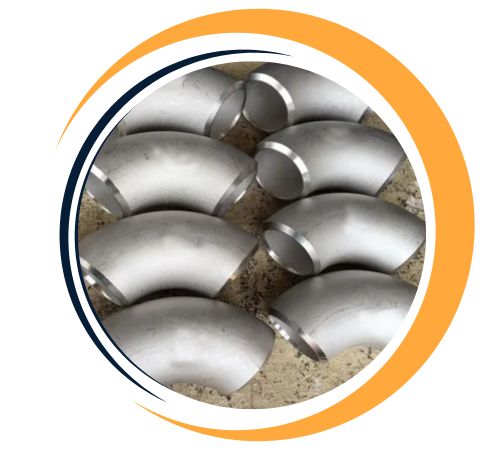

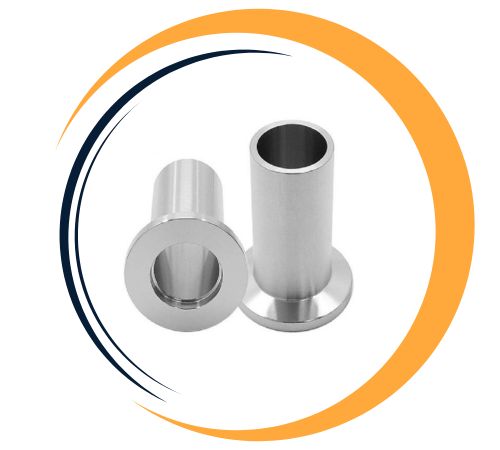

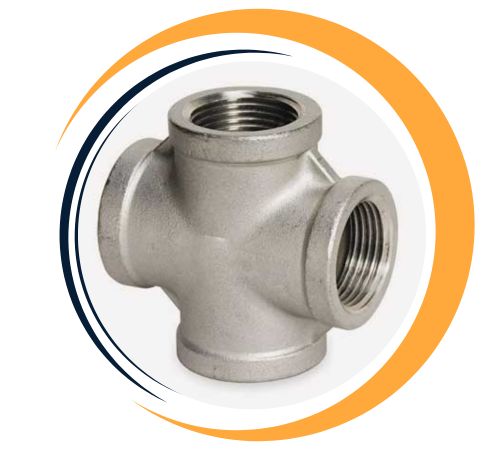

Yash Fittin, Mumbai, India, is a prominent distributor of excellent nickel alloy pipe fittings to serve a variety of industries like chemical processing, petrochemicals, oil and gas, power generation, aerospace, marine, and pharmaceuticals. The product offerings include elbows, tees, reducers, couplings, and flanges, and come in seamless as well as welded form, meeting international standards.
| Specification : | ASTM B 366 / ASME SB 366 |
| Dimensions : | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Size : | Seamless 1/2″ – 10″ , Welded 1/2″ – 48″ |
| Thickness : | Sch Sch 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160 Sch XXS |
| Types : | Seamless / ERW / Welded / Fabricated |
| Nickel 200: 2.4066, N02200, NW 2200 Nickel 201: 2.4068,N02201, NW 2201 |
Nickel alloy pipe fittings are made primarily of nickel (Ni) along with a variety of alloying materials such as copper, chromium, molybdenum and steel Common alloys include Monel (Ni-Cu) and Inconel (Ni-Cr). These materials exhibit exceptional corrosion resistance, especially in harsh environments such as sea water, acidity and high temperature conditions. Mechanical properties include high tensile strength, good fatigue and thermal-fatigue strength, and good weldability. They provide resistance to pitting, stress corrosion cracking and oxidation, ensuring durability and reliability in
Nickel alloy pipe fittings, including Nickel 200 and Nickel 201, find extensive applications in high corrosion-resistant and mechanically strong industries.
**Chemical Properties:** Nickel 200 contains a minimum of 99% nickel with controlled levels of carbon (≤0.15%), manganese (≤0.35%), silicon (≤0.40%), sulfur (≤0.01%), and copper (≤0.25%). Nickel 201 contains similar composition but with reduced carbon content (≤0.02%), making it stronger against carbonization at high temperatures.
**Mechanical Properties:** These alloys have a density of 8.9 g/cm³ and a melting point of 1446°C. Nickel 200 and 201 possess a tensile strength of about 462 MPa (67,000 psi), a yield strength of 148 MPa (21,500 psi), and an elongation of 45%, which reflects very good ductility and strength.
**Physical Properties:** Nickel alloys possess high thermal and electrical conductivity, which makes them ideal for use in heat exchangers, chemical processing, and marine applications. Their corrosion and oxidation resistance provides longevity and reliability in severe conditions.
All these characteristics render nickel alloy pipe fittings suitable for severe applications in power generation, chemical processing, marine, and aerospace industries.
demanding applications such as the chemical industry, marine and aerospace industries.
| Grade | C | Ni | Si | S | Mn | Cu | Fe |
|---|---|---|---|---|---|---|---|
| Nickel 200 | 0.15 max | 99.0 min | 0.35 max | 0.01 max | 0.35 max | 0.25 max | 0.40 max |
| Nickel 201 | 0.02 max | 99.0 min | 0.35 max | 0.01 max | 0.35 max | 0.25 max | 0.40 max |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Nickel 200 / 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| Ni 200 | N02200 | 2.4066 | N-100M | Ni 99.2 | NW 2200 | NA 11 | НП-2 |
| Ni 201 | N02201 | 2.4068 | – | LC-Ni 99 | NW 2201 | NA 12 | НП-2 |
Nickel Alloy Pipe Fittings from Yash Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Nickel Alloy Pipe Fittings offer excellent corrosion resistance, making them ideal for harsh environments such as chemical processing, marine, and high-temperature applications. They have superior strength and durability, ensuring long-term performance under extreme conditions. These fittings exhibit excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, enhancing their reliability. Their high-temperature stability ensures they maintain mechanical integrity in elevated temperature environments. Additionally, nickel alloys offer great weldability, ease of fabrication, and versatile compatibility with various fluids, making them essential in industries requiring high-performance piping systems.
Yes, custom sizes for Nickel Alloy Pipe Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com
Nickel alloy pipe fittings are essential where high corrosion resistance and thermal stability are needed in industries. In petrochemical and chemical industries, they accommodate aggressive chemicals such as acids and alkalis to ensure safe and effective operations. Power generation plants use these fittings in heat exchangers and boilers to resist high temperatures and pressures. They are suited for shipbuilding and offshore platforms where seawater corrosion resistance is desirable in marine applications. Moreover, the aerospace sector depends on their strength for engine parts. They also find application in food processing and pharmaceutical industries, where material integrity and hygiene become critical
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
