Incoloy 825 Pipe Fittings

Yash Fittings is a well-known distributor and manufacturer of quality pipe fittings, dealing in a vast variety of materials for catering to a wide variety of industrial needs. One of their best-sellers is the Incoloy 825 pipe fitting, which is fabricated from a nickel-iron-chromium alloy having superior resistance against corrosion, oxidation, and reducing environments. Incoloy 825 finds extensive applications in chemical processing, pollution control equipment, and power plants owing to its strong resistance and high strength. Its better properties make it a best option for harsh conditions, providing reliability and durability in harsh applications.

UNS N08825 Elbow And Most Reliable Alloy 825 Tubing Fittings India, Incoloy 825 Pipe Fitting United kingdom, ASTM B366 N08825 Incoloy 825 Fittings Suppliers Mumbai, Incoloy 825 Buttweld Fittings West Mumbai, ASTM B366 WPNICMC Fittings Mumbai, Incoloy 825 Elbow Fittings Mumbai, UNS N08825 Tee Fittings Dealer Mumbai, Alloy 825 Fittings Stockists Mumbai, India.

Incoloy 825 Pipe Fittings Specification

Spec Chart Of:	Incoloy 825 Pipe Fittings
Dimension Table Of:	ANSI B16.9, JIS B2312, MSS-SP-43 Type B, ASME B16.28, JIS B2313, MSS-SP-43 Type A
Fittings Materials Directory:	Iron (Ductile/Cast), Carbon Steel, Titanium, Nickel Alloys, Nickel, Cupro-Nickel 90/10 & 70/30, Brass, Bronze, Copper, Chrome-molybdenum, Inconel, Monel, Tantalum, Stainless Steel, Hastalloy, Alloy Steel
Size Calculation:	Normal Pipe Size (1⁄₂”) to Normal Pipe Size (48”)
Standard Fittings Chart	JIS, NPT, ISO, DIN, EN
Manimum Pressure	Class 150# To Class 2500#.
Schedule Chart:	Schedule 5s/ Schedule 10s/ Schedule 40/ Schedule 80/ Schedule 120/ Schedule 160.
Most Demanded Fittings Types	Adapter, 4 Wye, End Cap, Stub End, Reducer, Cross, Bend, Elbow, Tee
Buttweld Fittings Connection Type	Threaded/ Weld/ Flange/ Clamp End / End Bell

Incoloy 825 Pipe Fittings Chemical Composition

The Chemical Composition of Incoloy 825 Pipe Fittings, %
Nickel	38.0-46.0
Iron	≥22.0
Chromium	19.5-23.5
Molybdenum	2.5-3.5
Copper	1.5-3.0
Titanium	0.6-1.2
Carbon	≤0.05
Manganese	≤1.00
Sulfur	≤0.030
Silicon	≤0.50
Aluminum	≤0.20

Incoloy 825 Pipe Fittings Mechanical Properties

Tensile Strength, min.		Yield Strength, min.		Elongation, min.	Elastic Modulus
Mpa	%	Gpa	10⁶psi	ksi	Mpa	ksi
690	45	206	29.8	100	310	45

Incoloy 825 Pipe Fittings Equivalent Indian Standard

STANDARD	AFNOR	EN	OR	WERKSTOFF NR.	UNS	JIS	BS	GOST
Incoloy 825 Pipe Fittings	NFE30C20DUM	NiCr21Mo	XH38BT	2.4858	N08825	NCF 825	NA 16	ЭП703

Incoloy 825 pipe fittings have a distinct combination of physical, chemical, and mechanical properties that suit them for very aggressive industrial conditions. Chemically, Incoloy 825 consists mainly of iron, nickel, and chromium with considerable additions of molybdenum and copper, which improve their resistance to corrosion, pitting, and stress corrosion cracking. Mechanically, the alloy shows high strength even at higher temperatures and good ductility and formability. Its tensile strength is usually 50,000 to 80,000 psi. Physically, Incoloy 825 resists oxidation and scaling well in temperatures up to 1000°F (540°C) and thus finds applications in heat exchangers, chemical processing, and offshore oil and gas platforms. Its low permeability to magnetism and weldability also contribute towards its application in extreme environments.

Distributors of Incoloy 825 Buttweld Pipe Fittings in India, ASTM B366 N08825 Equal Tee United kingdom, 825 Incoloy® Alloy Welded Pipe Fittings Suppliers Mumbai, Werkstoff Nr. 2.4858 Concentric Reducer West Mumbai, 800HT Incoloy 825 45°/90°/180° Butt weld Elbow Mumbai, Nickelvac® 825 Pipe Fittings Mumbai, Alloy 825 Buttweld Pipe Nipple Mumbai, High-Quality ASME B366 Incoloy N08825 Stub End Mumbai, India.

Largest Incoloy 825 Pipe Fittings Supplier in Mumbai, India

Yash Fittings is a leading supplier of Incoloy 800/ 800H/ 800HT Pipe Fittings in Mumbai, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Why Choose Incoloy 825 Pipe Fittings from Yash Fittings?

Incoloy 825 Pipe Fittings from Yash Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS N08825 Elbow And Most Reliable Alloy 825 Tubing Fittings India, Incoloy 825 Pipe Fitting United kingdom, ASTM B366 N08825 Incoloy 825 Fittings Suppliers Mumbai, Incoloy 825 Buttweld Fittings West Mumbai, ASTM B366 WPNICMC Fittings Mumbai, Incoloy 825 Elbow Fittings Mumbai, UNS N08825 Tee Fittings Dealer Mumbai, Alloy 825 Fittings Stockists Mumbai, India.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

NPS (Normal Pipe Size)	O.D. (Outside Daimeter)		Elbow 90 Deg		Elbow 45 Deg		Return Elbow 180 Deg
*(inch)*			Long Radius Elbow	Short Radius	Long Radius Elbow		Long Radius Elbow
	*(millimeter/ MM)*	*(inch./ Inches)*	Center to Face (Inches)	Center to Face (Inches)	Center to Face (Inches)	Radius (Inches)	Center to Center (Inches)	Back to face (Inches)
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8	–	7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Alloy 825 Pipe Fittings Weight Chart Table

DN (Normal Pipe Size) For ASME B16.9	Schedule 10S			Schedule 40S			Schedule 80S
DN (Normal Pipe Size) For ASME B16.9	Elbow 90 Deg	Elbow 45 Deg	B16.9 Equal Tee	Elbow 90 Deg	Elbow 45 Deg	B16.9 Equal Tee	Elbow 90 Deg	Elbow 45 Deg	B16.9 Equal Tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

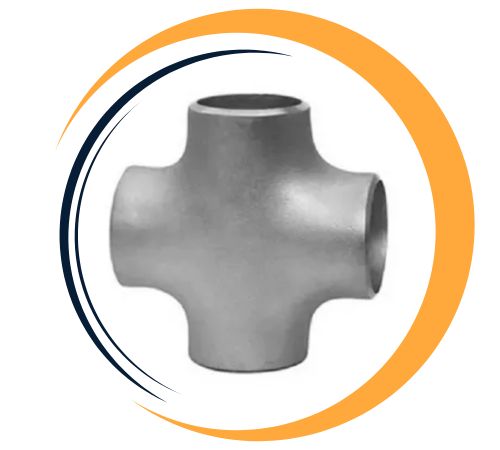

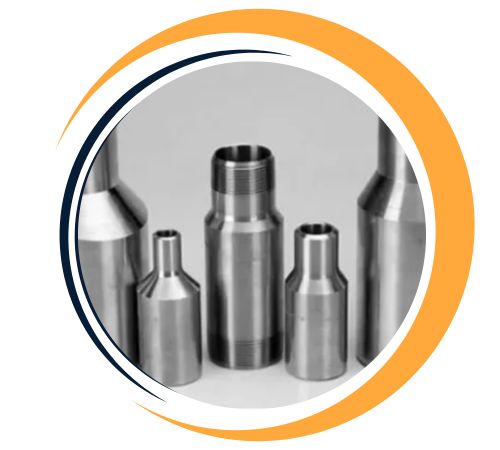

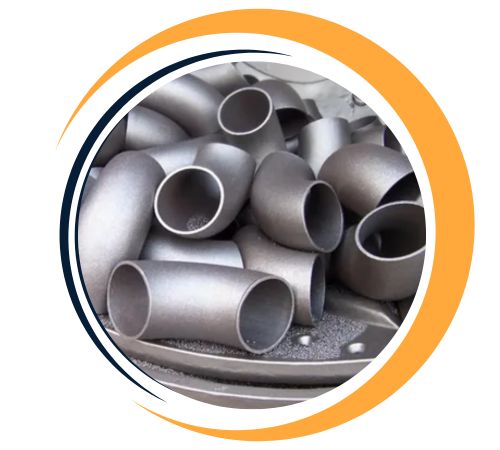

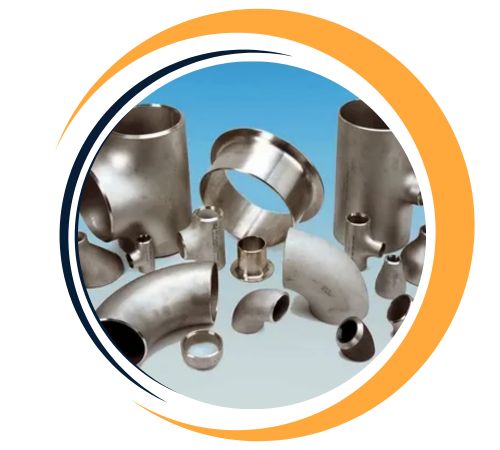

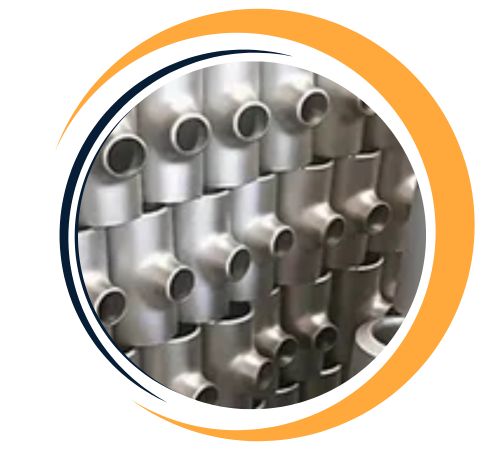

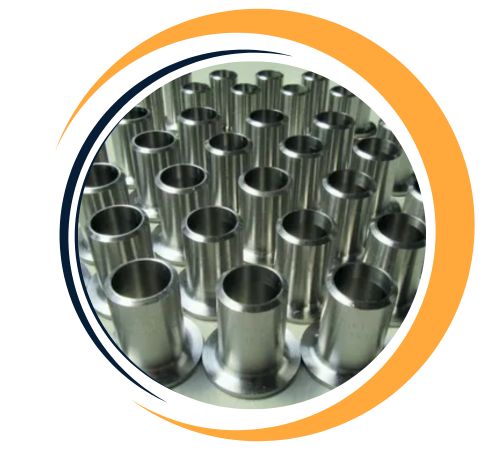

Types of Incoloy 825 Pipe Fittings

Are Custom Sizes Available for Incoloy 825 Pipe Fittings?

Yes, custom sizes for Incoloy 825 Pipe Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com

Distributors of Incoloy 825 Buttweld Pipe Fittings in India, ASTM B366 N08825 Equal Tee United kingdom, 825 Incoloy® Alloy Welded Pipe Fittings Suppliers Mumbai, Werkstoff Nr. 2.4858 Concentric Reducer West Mumbai, 800HT Incoloy 825 45°/90°/180° Butt weld Elbow Mumbai, Nickelvac® 825 Pipe Fittings Mumbai, Alloy 825 Buttweld Pipe Nipple Mumbai, High-Quality ASME B366 Incoloy N08825 Stub End Mumbai, India.

Application Industry of Incoloy 825 Pipe Fittings

Incoloy 825 fittings for pipes are applied extensively in corrosion-resistant and high-temperature applications across industries. Chemical processing, petrochemical facilities, and pollution control systems are some of the widespread applications where the corrosion resistance of the alloy to acid, sulfur, and chloride is a requirement. Fittings are also employed in nuclear plants, power plants, and seawater handling systems because of their capability to endure extreme conditions such as acidic and brackish environments. Also, Incoloy 825 is suitable for heat exchangers, scrubbers, and other machinery where durability and long-term performance in adverse conditions are paramount.
