Incoloy 825 Buttweld Fittings

Yash Fittings is one of the leading suppliers and manufacturers of high-quality industrial pipe fittings, synonymous with providing precision, reliability, and performance in a wide range of industries. Part of its specialty products are Incoloy 825 Buttweld Fittings, which are made from ASTM B366 Grade Incoloy 825 (UNS N08825). These are designed to withstand extremely corrosive environments, especially when the application includes acid and chloride-bearing media. With superior resistance to crevice corrosion, pitting, and stress corrosion cracking, Incoloy 825 fittings are perfect for pollution-control equipment, marine, and chemical processing, all guaranteeing a safe and reliable performance in hostile industrial environments.

ANSI B16.9 Incoloy 825 Welded Buttweld Fittings India, Incoloy UNS N08800 Seamless Pipe Fittings United kingdom, Incoloy 3d Pipe Bend Mumbai, Alloy 825 Short Radius Elbow Supplier West Mumbai, Incoloy 825 Pipe Fittings Mumbai, 825 Incoloy® Alloy Welded Pipe Fittings Dealer Mumbai, 825 Incoloy Alloy End Cap Mumbai, ASTM B366 825 Incoloy Alloy 90 degree Elbow Exporters and Suppliers in India, Incoloy 1.5d Pipe Bend United kingdom, 825 Incoloy Alloy End Cap Mumbai, Incoloy WERKSTOFF NR1.4958 Cross Exporter in Mumbai.

Incoloy 825 Buttweld Fittings Specification

Grade	Incoloy Alloy 825 / UNS N08825
Standard	ASTM B366, ASME SB366
Dimensions	ASME B16.28, ASME/ANSI B16.9, MSS-SP-43
Incoloy 825 Seamless Fittings	1/2″ NB – 10″ NB
Incoloy 825 Welded Fittings	1/2″ NB – 48″ NB
Form	90 Elbow, 45 Elbow, Long Radius Elbow, Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, End Cap, Dish Cap
Schedule	SCH 5 To SCH XXS
Wall Thickness	from 2 to 40 mm
Type	Seamless / Welded / Fabricated

Incoloy 825 Buttweld Fittings Chemical Composition

Ni	Fe	C	Mn	Si	Mb	Cu	Cr	Al	Ti	S
38.0 – 46.0	22.0 min	0.05 max	1.0 max	0.5 max	2.5 – 3.5	1.5 – 3.0	19.5 – 23.5	0.2 max	0.6 – 1.2	0.015 max

Incoloy 825 Buttweld Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa -550	Psi – 32,000 , MPa – 220	30 %

Incoloy 825 Buttweld Fittings consist of a nickel-iron-chromium alloy with molybdenum, copper, and titanium additions. Chemically, the high nickel (38-46%) composition offers superior resistance to stress corrosion cracking, and chromium (19.5-23.5%) and molybdenum (2.5-3.5%) offer resistance to oxidizing and reducing acids. Mechanically, Incoloy 825 exhibits good tensile and yield strength and superior toughness and fatigue resistance. Physically, it is stable throughout a broad temperature range and has high thermal conductivity and scale resistance. It is thus best suited for the harsh conditions of chemical and marine exposures.

825 Incoloy Alloy End Cap India, Incoloy® Alloy 825 180 Deg bend United kingdom, Incoloy Alloy 825 Pipe Bend Mumbai, Jis Ncf 825 Pipe Fittings West Mumbai, Incoloy Alloy 825 Stub Ends Mumbai, Incoloy 825 Pipe End Cap Mumbai, 825 Incoloy Alloy End Cap Mumbai, Incoloy® Alloy 825 Equal Tee Mumbai, Ansi B16.9 800h Incoloy 45 / 90 / 180 Deg. Reducing Elbow India, Incoloy 825 Pipe Elbow Mumbai, Supplier of Incoloy 825 45 degree Elbow India, Incoloy 10d Pipe Bend West Mumbai, 825 Incoloy Reducer, Incoloy® Alloy 825 Pipe bend Supplier in India.

Largest Incoloy 825 Buttweld Fittings Supplier in Mumbai, India

Yash Fittings is a leading supplier of Incoloy 825 Buttweld Fittings in Mumbai, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Why Choose Incoloy 825 Buttweld Fittings from Yash Fittings?

Incoloy 825 Buttweld Fittings from Yash Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

ANSI B16.9 Incoloy 825 Welded Buttweld Fittings India, Incoloy UNS N08800 Seamless Pipe Fittings United kingdom, Incoloy 3d Pipe Bend Mumbai, Alloy 825 Short Radius Elbow Supplier West Mumbai, Incoloy 825 Pipe Fittings Mumbai, 825 Incoloy® Alloy Welded Pipe Fittings Dealer Mumbai, 825 Incoloy Alloy End Cap Mumbai, ASTM B366 825 Incoloy Alloy 90 degree Elbow Exporters and Suppliers in India, Incoloy 1.5d Pipe Bend United kingdom, 825 Incoloy Alloy End Cap Mumbai, Incoloy WERKSTOFF NR1.4958 Cross Exporter in Mumbai.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Incoloy 825 Buttweld Fittings Dimensions

Nominal PipeSize	Outside Diameter		90° Elbows		45° Elbows		180° Returns
*(inches)*	–		Long Radius	Short Radius	Long Radius		Long Radius
	*(mm)*	*(inches)*	Center to Face (inches)	Center to Face (inches)	Center to Face (inches)	Radius (inches)	Center to Center (inches)	Back to face (inches)
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8		7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

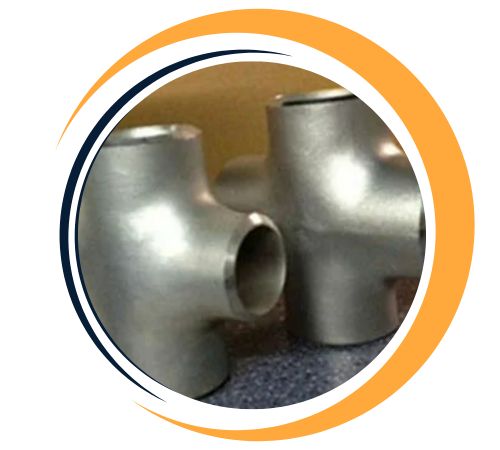

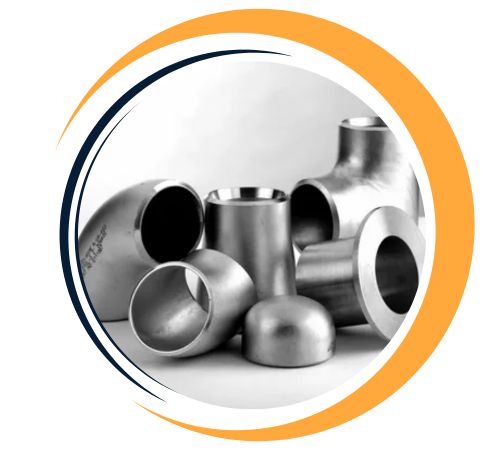

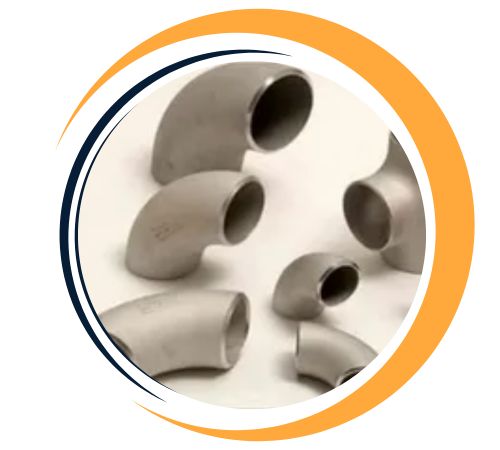

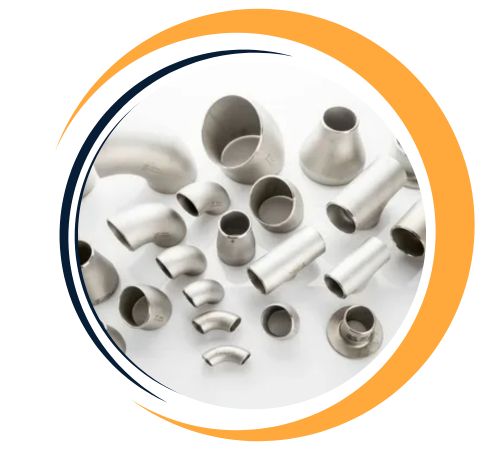

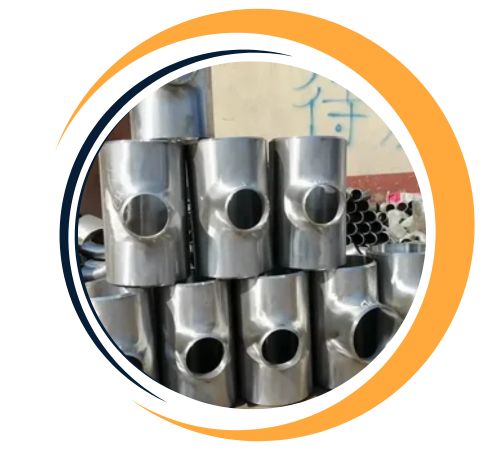

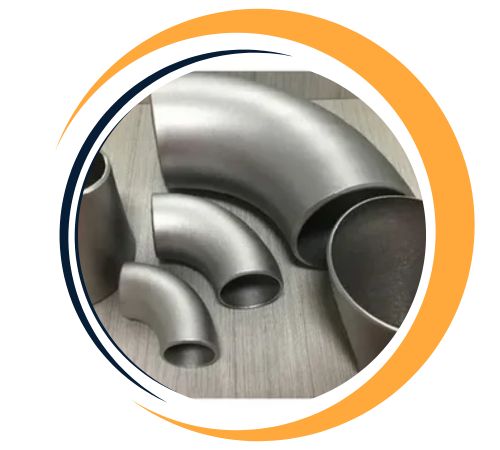

Types of Incoloy 825 Buttweld Fittings

Are Custom Sizes Available for Incoloy 825 Buttweld Fittings?

Yes, custom sizes for Incoloy 825 Buttweld Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com

825 Incoloy Alloy End Cap India, Incoloy® Alloy 825 180 Deg bend United kingdom, Incoloy Alloy 825 Pipe Bend Mumbai, Jis Ncf 825 Pipe Fittings West Mumbai, Incoloy Alloy 825 Stub Ends Mumbai, Incoloy 825 Pipe End Cap Mumbai, 825 Incoloy Alloy End Cap Mumbai, Incoloy® Alloy 825 Equal Tee Mumbai, Ansi B16.9 800h Incoloy 45 / 90 / 180 Deg. Reducing Elbow India, Incoloy 825 Pipe Elbow Mumbai, Supplier of Incoloy 825 45 degree Elbow India, Incoloy 10d Pipe Bend West Mumbai, 825 Incoloy Reducer, Incoloy® Alloy 825 Pipe bend Supplier in India.

Application Industry of Incoloy 825 Buttweld Fittings

Incoloy 825 Buttweld Fittings find extensive application in industries with a need for superior resistance against corrosive and aggressive media. They are well-suited for chemical processing, pollution control, marine, oil and gas, and acid production applications. The fittings prove to be very efficient in dealing with sulfuric, phosphoric, and nitric acids and solutions containing chlorides. Their pitting, crevice corrosion, and stress corrosion cracking resistance qualify them for pipelines, heat exchangers, scrubbers, and equipment used in seawater. Incoloy 825 fittings provide long-lasting performance and reliability in challenging industrial applications.
