Yash Fittings is a dominant manufacturer and supplier of high-quality industrial pipe fittings renowned for offering dependable, robust, and precision-engineered solutions to different industries. Some of their high-end products include Alloy Steel WP5 Buttweld Fittings, which are manufactured using ASTM A234 Grade WP5. These buttwelded fittings are specifically engineered for high-pressure and high-temperature applications and provide superior strength, toughness, and resistance to oxidation. Perfect for applications in refineries, petrochemical industries, and power plants, Yash Fittings’ Alloy Steel WP5 Buttweld Fittings guarantee high performance and reliability under extreme conditions in critical systems.
| Specifications | : | ASTM A234 / ASME SA234 |
| Size | : | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | : | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Type | : | Seamless / Welded / Fabricated |
Alloy Steel WP5 Buttweld Fittings consist of a mixture of chromium (0.5-1%) and molybdenum (0.25-0.6%), which ensure greater resistance to corrosion and high-temperature oxidation. Chemically, the alloy is highly resistant to scaling and creep under high temperatures and is thus found in severe applications. Mechanically, WP5 fittings possess high tensile strength, good yield strength, and high toughness, ensuring pressure durability. Physically, the fittings have good thermal fatigue resistance, high-pressure stability, and good thermal conductivity, which makes them suitable for petrochemical industries, power plants, and steam systems.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP5 | ≤0.15 | ≤0.6 | ≤0.5 | ≤0.04 | ≤0.03 | 4-6 | 0.44-0.65 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP5 | 415 – 585 | ≥205 | ≥20 |

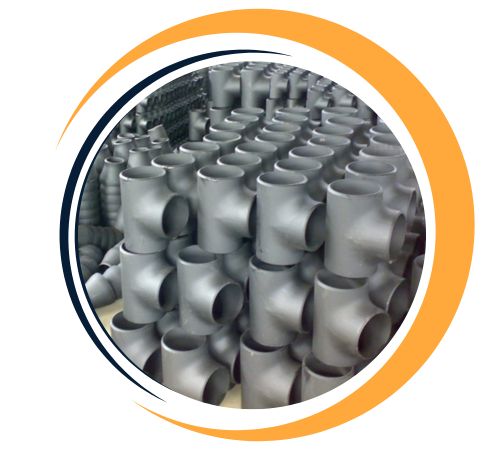

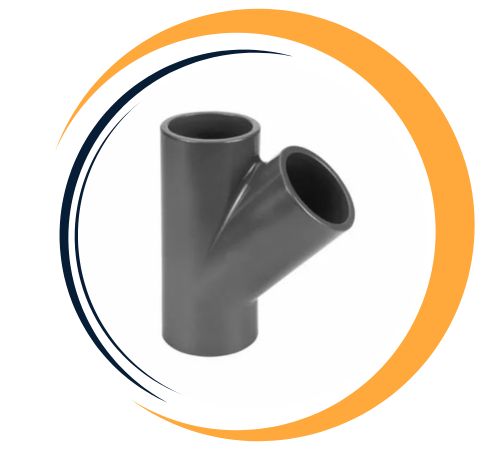

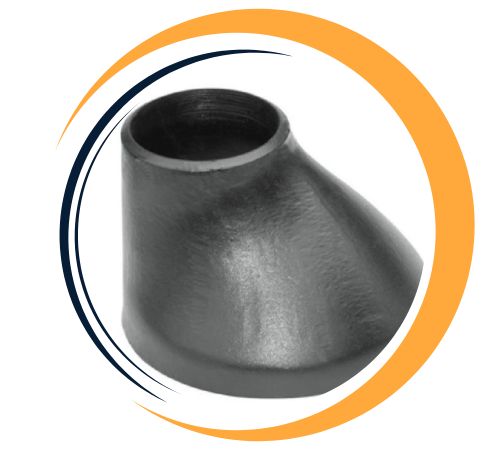

Yash Fittings one of the largest suppliers of Alloy Steel WP5 Buttweld Fittings in Mumbai, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Alloy Steel WP5 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Alloy Steel WP5 Buttweld Fittings in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP5 Buttweld Fittings from Yash Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| O.D. or I.D. Diameter | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
| 5/16 | 0.313 | 1/16 | 27 |
| 13/32 | 0.405 | 1/8 | 27 |
| 35/64 | 0.540 | 1/4 | 18 |
| 43/64 | 0.675 | 3/8 | 18 |
| 27/32 | 0.840 | 1/2 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
| 2-3/8 | 2.375 | 2 | 11-1/2 |
| 2-7/8 | 2.875 | 2-1/2 | 8 |
| 3-1/2 | 3.500 | 3 | 8 |
| 4 | 4.000 | 3-1/2 | 8 |
| 4-1/2 | 4.500 | 4 | 8 |
| ASTM A234 WP5 Pipe Fittings (Grade WP5 To WP91) Tolerance | 90 Deg And 45 Deg Elbows And Pipe Tee | Reducer (Concentric/ Eccentric) & Lap Joint Stub End (Long / Short) | Pipe End Caps | |||
| Normal Pipe Size (NPS) Of ASME B16.9 | O. (Outside) D. (Daimeter) at Bevel | I. (Inside) D.(Daimeter) at End | Wall Thickness Of T | Center-to-End Dimension A ,C ,B | Over-all Length Of H | Over-all Length Of F |
| 1/2 to 2-1/2 | +0.06 | Not less than 87.5% of nominal thickness | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| -0.03 | ||||||
| 3 to 3-1/2 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 4 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 5 to 8 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.25 | |
| 10 to 18 | +0.16 | +/- 0.12 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.12 | ||||||
| 20 to 24 | +0.25 | +/- 0.19 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.19 | ||||||
| 26 to 30 | +0.25 | +/- 0.19 | +/- 0.12 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
| 32 to 48 | +0.25 | +/- 0.19 | +/- 0.19 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
Yes, custom sizes are available for Alloy Steel WP5 Buttweld Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@yashfittings.com
| STANDARD | 348H Pipe Fittings |
| EN | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| JIS | SUS 316L |
| BS | 316S11 / 316S13 |
| UNS | S34809 |
| WERKSTOFF NO. | 1.4546 |
| AFNOR | Z7CND17‐11‐02 |
| GOST | 03Ch17N14M3 / 03Ch17N14M2 |
Alloy Steel WP5 Buttweld Fittings have extensive applications in high-strength and heat-resistance industries. They are found commonly in power plants, steam lines, petrochemical refineries, and high-temperature fluid systems. The fittings are best suited for joining pipes in boilers, heat exchangers, and turbines, where high-pressure environments are the norm. Thanks to their superior oxidation, creep, and thermal fatigue resistance, Alloy Steel WP5 Buttweld Fittings provide consistent and durable performance under tough applications and are the unavoidable choice for demanding industrial operations.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
