Yash Fittings, having its headquarters in Mumbai, India, is a well-known producer and supplier of high-grade pipe fittings used across a large number of industries such as oil & gas, chemical processing, and marine. Some of their high-end products include the Duplex Steel S32205 Pipe Fittings, produced using UNS S32205 grade. The fittings integrate the finest characteristics of both austenitic and ferritic stainless steels, providing better strength, corrosion resistance, and improved durability. Duplex Steel S32205 Pipe Fittings. The Duplex Steel S32205 grade is particularly suited for aggressive environments and has superior resistance to stress corrosion cracking due to chlorides.
| Specifications Standard | ASTM A815 /ASME SA815 |
|---|---|
| Duplex 2205 Pipe Fittings Size Range | Welded Fittings: 1/2″ – 48″ Seamless Fittings: 1/2″ – 10″ |
| Connection | Welding |
| Type | DN15 to DN1200 |
| Origin & Mills | Indian, European, Korean, Japanese, Ukraine, USA, Russian |
| Radius of bending | R=3D, 1D, 8D, 10D, 5D, 2D, Custom MSS Sp-43, 6D |
| Duplex 2205 Pipe Fittings Manufacturing process | Forge, Press, Cast, Push etc. |
| Thickness | SCH10, SCH40, XS, SCH30, SCH 160, SCH 80, SCH 140, SCH60, SCH20, STD , SCH 120, SCH 100, XXS |
| Pressure Ratings | 2000#, 150#, 6000#, 3000#, 9000# |
| End Connections: | socket weld and Threaded |

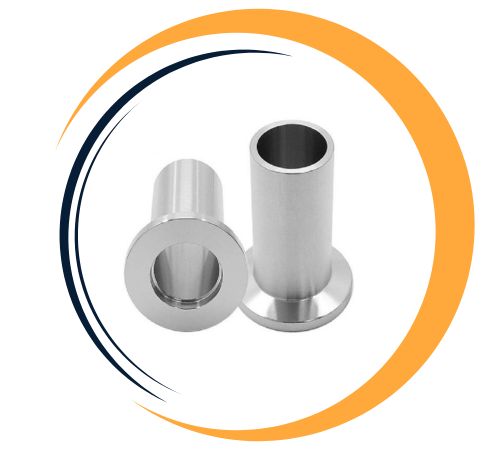

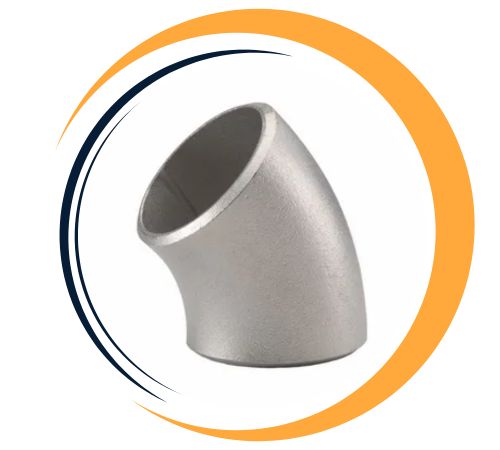

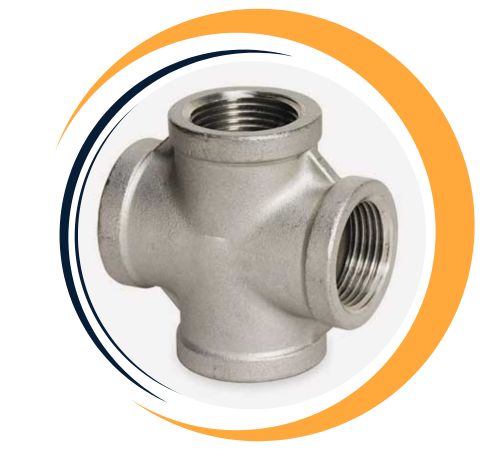

| Duplex 2205 Pipe Fittings manufacturer | 90º Tee, Elbows, Pipe Cap, Stub End, 45º Elbows, Crosses, Pipe Bend, Reducers |
| Dimensions | ASME B16.28, BS4504, MSS-SP-43, ASME/ANSI B16.9, BS1560, BS4504, BS10 |
| Elbows | Angle : 2.0D, 1.5D, 5D, 3D, 1.0D, 6D, 4D, 2.5D, 7D-40D . Standard: JISB2312, MSS SP-75, 22.5 deg, JISB2313, 30deg, ASME B16.9, 180 deg, 45 deg, JISB2311 BS, DIN2605, 90 deg, GB ISO |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate Third Party Inspection Report, etc |
Duplex Steel S32205 Pipe Fittings contain around 22% chromium, 5–6.5% nickel, and 3% molybdenum in terms of chemical composition, along with nitrogen for added strength. The alloy is highly resistant to pitting, crevice corrosion, and chloride stress corrosion. Mechanically, the fittings possess high tensile strength (up to 620 MPa) and higher yield strength due to which they are used in high-pressure applications. They are also resistant to fatigue, impact, and stress corrosion cracking. Physically, Duplex Steel S32205 also possesses good hardness, dimensional stability, and improved weldability for ensuring stable performance under hostile conditions.
| Grade | C | Mn | Si | N | P | Cr | Fe | Ni | S | Mo |
| S32205 Fittings | 0.030 maximum | 2.00 maximum | 1.00 maximum | 0.8 to 0.20 | 0.030 maximum | 21.0 to 23.0 | 63.54 minimum | 4.50 to 6.50 | 0.020 maximum | 2.50 to 3.50 |
| Grades | Density (lb/in 3) | Melting Point (°F) | Density (g/centimeter 3) | Melting Point (°C) |
| S32205 Fittings | 0.285 | 2588 to 2669 | 7.805 | 1420 to 1465 |
Yash Fittings is a leading supplier of Duplex Steel S32205 Pipe Fittings in Mumbai, India. We offer an extensive range of Duplex Steel S32205 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Standard | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Super Duplex 2205 | 1.4462 | S32205 | – | – | – | – | – |
Duplex Steel S32205 Pipe Fittings offer numerous advantages, including exceptional corrosion resistance, especially in chloride-rich environments. Their high strength-to-weight ratio makes them ideal for demanding applications while reducing structural load. The alloy’s superior resistance to stress corrosion cracking (SCC) and pitting enhances durability in harsh conditions. Duplex Steel S32205 fittings also exhibit excellent weldability, ensuring reliable connections. With good formability and high toughness, they are well-suited for chemical, marine, and oil and gas industries, providing long-lasting performance and reducing maintenance needs.
| NOMINAL PIPE SIZE | ALL FITTINGS | ALL FITTINGS | 180 DEG RETURN BENDS | REDUCERS | ELBOWS AND TEES | 180 DEG RETURN BENDS | CAPS |
|---|---|---|---|---|---|---|---|
| NPS | ID at End (1), (3), (4) | OD at Bevel (1), (2) | Centre-to- Centre O | Overall Length H | Centre -to- End Dimension A, B, C, M | Alignment of Ends U | Overall Length E |
| ½ to 2½ | 0.003 | 0.006 -0.003 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 3 to 3 ½ | 0.006 | 0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 4 | 0.006 | 0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 5 to 8 | 0.006 | 0.009 -0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.025 |
| 10 to 18 | 0.012 | 0.016 -0.012 | 0.038 | 0.009 | 0.009 | 0.006 | 0.025 |
| 20 to 24 | 0.019 | 0.025 -0.019 | 0.038 | 0.009 | 0.009 | 0.006 | 0.025 |
| 26 to 30 | 0.019 | 0.025 -0.019 | … | 0.019 | 0.012 | … | 0.038 |
| 32 to 48 | 0.019 | 0.025 -0.019 | … | 0.019 | 0.019 | … |
Yes, custom sizes for Duplex Steel S32205 Pipe Fittings are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com
Duplex Steel S32205 Pipe Fittings find extensive application in oil and gas, petrochemical, marine, and power generation industries. They are perfect for high-pressure equipment, heat exchangers, and aggressive environment piping systems like seawater or chloride-based solutions. They are used extensively in offshore platforms, subsea pipelines, and chemical processing facilities where high strength and resistance against corrosion are essential. Their resistance and strength to stress corrosion cracking render them ideal for use in demanding and austere environments in critical applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
